Wolfram Audio Subwoofers

The JL Audio W6v3 subwoofer offers intensely powerful sub-bass with exceptional sound quality. Features motor linearity and suspension technology shared with flagship W7AE subwoofers, delivering reduced distortion and outstanding dynamic balance. The solid cast-alloy basket handles high power without distortion-causing flexing, while a sophisticated suspension system promotes linear cone movement for greater accuracy. Greater excursion capability and higher power handling distinguish it from the W3v3 series. Includes advanced cooling systems and mineral-filled polypropylene cone for incredible strength without added bulk.

10" SPL Subwoofer

12" SPL Subwoofer

Sale

The JL Audio W6v3 subwoofer offers intensely powerful sub-bass with exceptional sound quality. Features motor linearity and suspension technology shared with flagship W7AE subwoofers, delivering reduced distortion and outstanding dynamic balance. The solid cast-alloy basket handles high power without distortion-causing flexing, while a sophisticated suspension system promotes linear cone movement for greater accuracy. Greater excursion capability and higher power handling distinguish it from the W3v3 series. Includes advanced cooling systems and mineral-filled polypropylene cone for incredible strength without added bulk.

The JL Audio W6v3 subwoofer offers intensely powerful sub-bass with exceptional sound quality. Features motor linearity and suspension technology shared with flagship W7AE subwoofers, delivering reduced distortion and outstanding dynamic balance. The solid cast-alloy basket handles high power without distortion-causing flexing, while a sophisticated suspension system promotes linear cone movement for greater accuracy. Greater excursion capability and higher power handling distinguish it from the W3v3 series. Includes advanced cooling systems and mineral-filled polypropylene cone for incredible strength without added bulk.

15" SPL Subwoofer

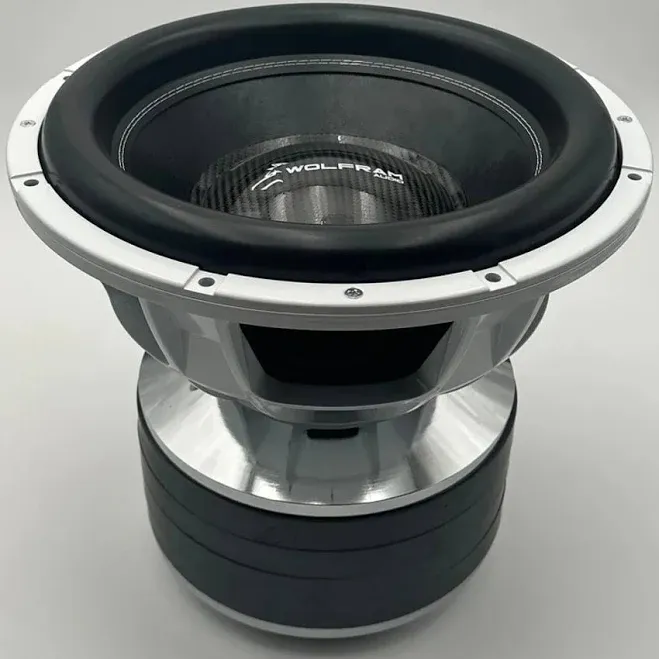

CHINESIUM   Wolfram Audio is proud to introduce the most powerful subwoofer in our lineup : the Chinesium series. With such a high continuous power handling, this subwoofer was engineered to be an absolute demo beast. The Chinesium series features a 280mm motor and 4 inch flatwound aluminum PE coil.   Specifications:  Wolfram Audio CH-15 - 15" SPL Subwoofer Dual 1 RMS Power: 5,000 Watts Peak Power: 10,000 Watts Voice Coil: 4" 8 Layer - Flatwound Aluminum PE Coil High Roll Stitched Foam Surround 6 Layer Nomex Spider 4 Gauge Push Terminals XMAX: 23mm  (One Way)   Thiele/Small Parameters ***T/S Parameters are direct from factory, we will be measuring in house shortly*** Re = 1 ohm Fs = 32.4 Hz  Qes = 0.34  Qms = 2.8  Qts = 0.31 Vas = 30.9 L BL = 25.7 N/A  Mms = 670.4 gr  Cms = 0.035 mm/N Sens = 86.7dB @1W/1m Various factors such as wiring, tuning, application and equipment in a vehicle influence the quality of the signals your woofers create, eliminating clipping. Although our products have a reputation for withstanding a lot of punishment for their power rating, using the correct air space and scoping for a clean signal will ensure that the subwoofer you purchase lasts for a long time and is durable on a daily basis.  ENCLOSURE RECOMMENDATIONS : Ported : 2.8 - 4.00ft ( Power Dependent) Mounting Depth: 13.07"  Cutout Diameter: 14.125" Please make sure to double check measurements on Subwoofer prior to building your enclosure

The JL Audio W6v3 subwoofer offers intensely powerful sub-bass with exceptional sound quality. Features motor linearity and suspension technology shared with flagship W7AE subwoofers, delivering reduced distortion and outstanding dynamic balance. The solid cast-alloy basket handles high power without distortion-causing flexing, while a sophisticated suspension system promotes linear cone movement for greater accuracy. Greater excursion capability and higher power handling distinguish it from the W3v3 series. Includes advanced cooling systems and mineral-filled polypropylene cone for incredible strength without added bulk.

The Wolfram Audio Cu series are high performance, cost effective, competition grade subwoofers that stand out from the crowd in every aspect. The Cooper Series features a triple stack motor and a 3" high temperature copper voice coil, and an advanced cooling design.  Cu is the chemical symbol for Copper - an inexpensive, yet precious metal. In other words, the Cu series is a fantastic option for daily bangin' without breaking the bank! Specifications: Wolfram Audio Cu-10 Dual 2 or 4 Ohm Voice Coil Configuration Peak Power : 2500 Watts RMS Power : 1250 Watts Competition Grade Pressed Paper Cone Stitched High Roll Foam Surround 2 layer Nomex spider 3" High Temp Copper Voice Coil 8 Gauge Push Terminals Sensitivity : 81.5 dB Fs : 33.1 Hz Re :  2.0 or 4.0 Ohms Qms : 2.76 Qes :  0.43 Qts :  0.37 Nref :  0.88% Bl :  33.2 Vas :  10.8L Mms :  328.5 gr Xmax :  20mm (One-Way) Enclosure Recommendations: Sealed: 1.0-1.25 ft³  Ported: 2.0-2.5 ft³ Tuned 32hz-34hz Mounting Depth: 7.87" Cutout: 9.5" Displacement: 0.12 ft³   This Woofer is not compatible with the original CU10

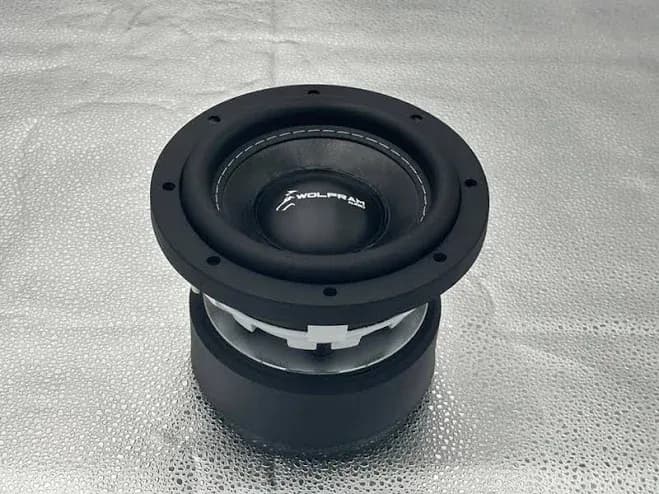

The Wolfram Audio Cu series are high performance, cost effective, competition grade subwoofers that stand out from the crowd in every aspect. The Cu series features a double stacked 180oz ferrite motor, 2" high temperature copper voice coil, and an advanced cooling design.  Cu is the chemical symbol for Copper - an inexpensive, yet precious metal. In other words, the Cu series is a fantastic option for daily bangin' without breaking the bank! Specifications: Wolfram Audio Cu-6.5 Dual 2 or 4 Ohm Voice Coil Configuration Peak Power : 700 Watts RMS Power : 350 Watts Competition Grade Pressed Paper Cone Stitched High Roll Foam Surround 180oz Stacked Magnet 2 layer PC spider 2" Copper Voice Coil 8 Gauge Push Terminals   Sensitivity : 82 dB Fs : 49.5 Hz Re : 2.0 or 4.0 Ohms Qms : 3 Qes :  0.36 Qts :  0.32 Nref :  0.1% Bl :  17.5 Vas :  3.1 L Mms :  90.7 gr Xmax :  12mm (One-Way) Enclosure Recommendations: Sealed: 0.15 ft³  Ported: 0.2 - 0.4 ft³ Tuned 36hz-45hz Mounting Depth: 5 1/8 Cutout: 5 7/8 Outer Diameter With Gasket: 7 1/4 Displacement: 0.06 ft³

8" 750 Watt RMS Subwoofer

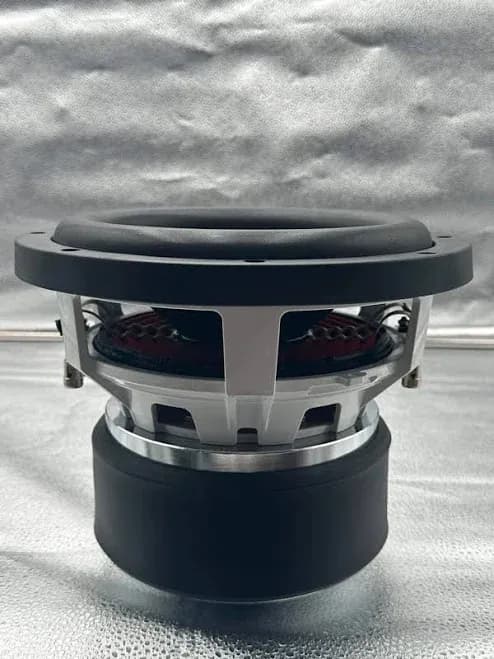

The Wolfram Audio Cu series are high performance, cost effective, competition grade subwoofers that stand out from the crowd in every aspect. The Cu series features a double stacked 180oz ferrite motor, 2.5" high temperature copper voice coil, and an advanced cooling design.  Cu is the chemical symbol for Copper - an inexpensive, yet precious metal. In other words, the Cu series is a fantastic option for daily bangin' without breaking the bank! Specifications: Wolfram Audio Cu-8 Dual 2 or 4 Ohm Voice Coil Configuration Peak Power : 1500 Watts RMS Power : 750 Watts Competition Grade Pressed Paper Cone Stitched Foam Surround 180oz Stacked Magnet 2 layer Nomex spider 2.5" High Temp Copper Voice Coil 8 Gauge Push Terminal Sensitivity : 81.0 dB Fs : 34.2 Hz Re :  2.0 or 4.0 Ohms Qms : 2.67 Qes :  0.36 Qts :  0.32 Nref :  0.07% Bl :  19.62 Vas :  8.84L Mms :  158 gr Xmax :  15mm (One-Way) Enclosure Recommendations: Sealed: 0.3 ft³  Ported: 0.5 - 0.75 ft³ Tuned 34hz-36hz Mounting Depth: 6.5" Cutout: 7.375” Outer Diameter Cutout: 8.5” Displacement: 0.08 ft³ This Woofer is not compatible with the original CU-8

The Wolfram Audio CUv2-10 is a high-performance subwoofer featuring a 2-inch cone with dual 4 voice coil configuration. Rated at 1250W RMS. Designed for deep bass reproduction and high SPL output.

The Wolfram Audio CUv2-6.5 is a high-performance subwoofer featuring a 2-inch cone with dual 4 voice coil configuration. Rated at 350W RMS. Designed for deep bass reproduction and high SPL output.

10" SPL Subwoofer

ALL NEW HG-v2 : New motor and soft part design along with the all time favored PE Coil Wolfram Audio introduces the new revision of our Hg-10: our unrivaled 10" SPL woofer when it comes to power, performance, and reliability. The Hg series features a massive 300oz magnet coupled with a heavily vented magnetic gap for extreme cooling. The Hg-10 utilizes a 3" 4-layer high temperature voice coil for an intense amount of power handling.    Specifications:   Wolfram Audio Hg-10  - 10" SPL Subwoofer Dual 1 or 2 Ohm Voice Coil Configuration Peak Power : 4000 Watts RMS Power : 2000 Watts Competition Grade Pressed Paper Cone Stitched High Roll Foam Surround Massive Triple Stacked Magnet 4 layer Nomex spider 3" Flat AL Wire Voice Coil 4 Gauge Push Terminals Sensitivity : 84.2 dB Fs : 39.4 Hz Re :  1 or 2 Ohm Qms : 2.25 Qes :  0.39 Qts :  0.33 Nref :  0.165% Cms :  0.07 mm/N Bl :  15.6 Vas :  10.9 L Mms :  229.3 gr Xmax :  20mm (One-Way) Enclosure Recommendations:  .75 - 1.00 ft³ Sealed 1.5 - 2.0 ft³ Ported (Tuned 32hz - 34hz) Mounting Depth: 8" Cutout Diameter: 9.25" Displacement: 0.15 ft³

12" SPL Subwoofer

ALL NEW HG-v2 : New motor and soft part design along with the all time favored PE Coil Wolfram Audio introduces the new revision of our Hg-12: our unrivaled 12" SPL woofer when it comes to power, performance, and reliability. The Hg series features a massive 300oz magnet coupled with a heavily vented magnetic gap for extreme cooling. The Hg-12 utilizes a 3" 4-layer high temperature voice coil for an intense amount of power handling.    NOT COMPATIBLE WITH ORIGINAL HG-12 Specifications:   Wolfram Audio Hg-12  - 12" SPL Subwoofer Dual 1 or 2 Ohm Voice Coil Configuration Peak Power : 4000 Watts RMS Power : 2000 Watts Competition Grade Pressed Paper Cone Stitched High Roll Foam Surround Massive Triple Stacked Magnet 4 layer Nomex spider 3" Flat AL Wire Voice Coil 4 Gauge Push Terminals Sensitivity : 85.9 dB Fs : 34.9 Hz Re :  1 or 2 Ohm Qms : 2.18 Qes :  0.43 Qts :  0.36 Nref :  0.245% Cms :  0.08 mm/N Bl :  14.6 Vas :  25.9 L Mms :  251.9 gr Xmax :  37mm (One-Way) Enclosure Recommendations:  1.0 - 1.25 ft³ Sealed 2.0 - 2.5 ft³ Ported (Tuned 32hz - 34hz) Mounting Depth: 8 1/2" Cutout Diameter: 11 1/4" Displacement: 0.13 ft³

15" SPL Subwoofer

ALL NEW HG-v2 : New motor and soft part design along with the all time favored PE Coil Wolfram Audio introduces the new revision of our Hg-15: our unrivaled 15" SPL woofer when it comes to power, performance, and reliability. The Hg series features a massive 300oz magnet coupled with a heavily vented magnetic gap for extreme cooling. The Hg-15 utilizes a 3" 4-layer high temperature voice coil for an intense amount of power handling.  NOT COMPATIBLE WITH THE ORIGINAL HG-15 Specifications:   Wolfram Audio Hg-15 V2 - 15" SPL Subwoofer Dual 1 or 2 Ohm Voice Coil Configuration Peak Power : 4000 Watts RMS Power : 2000 Watts Competition Grade Pressed Paper Cone Stitched High Roll Foam Surround Massive Triple Stacked Magnet 4 layer Nomex Spider 3" Flat AL Wire Voice Coil 4 Gauge Push Terminals Sensitivity : 88.4 dB Fs : 35.1 Hz Re : 1 or 2 Ohms Qms : 3.16 Qes : 0.49 Qts : 0.42 Nref : 0.435% Cms : 0.059 mm/N Bl : 16.2 Vas : 51 L Mms : 346.7 g Xmax : 38 mm (One-Way) Enclosure Recommendations:  2.5 - 2.75 ft³ Sealed 3.5 - 4.0 ft³ Ported (Tuned 32hz - 34hz) Mounting Depth: 9 7/8" Cutout Diameter: 14 1/8"" Displacement: 0.17 ft³

The Wolfram Audio HGv2 is a high-performance subwoofer. Designed for deep bass reproduction and high SPL output.

The Wolfram Audio HGv2-10 is a high-performance subwoofer featuring a 2-inch cone with dual 2 voice coil configuration. Rated at 2000W RMS. Designed for deep bass reproduction and high SPL output.

The Wolfram Audio HGv2-12 is a high-performance subwoofer featuring a 2-inch cone with dual 1 voice coil configuration. Rated at 2000W RMS. Designed for deep bass reproduction and high SPL output.

The Wolfram Audio HGv2-15 is a high-performance subwoofer featuring a 2-inch cone with dual 2 voice coil configuration. Rated at 2000W RMS. Designed for deep bass reproduction and high SPL output.

Nothing to see here......
