Home/Equipment/Subwoofers/Wolfram Audio/Hg-12 V2 | 12" SPL Subwoofer

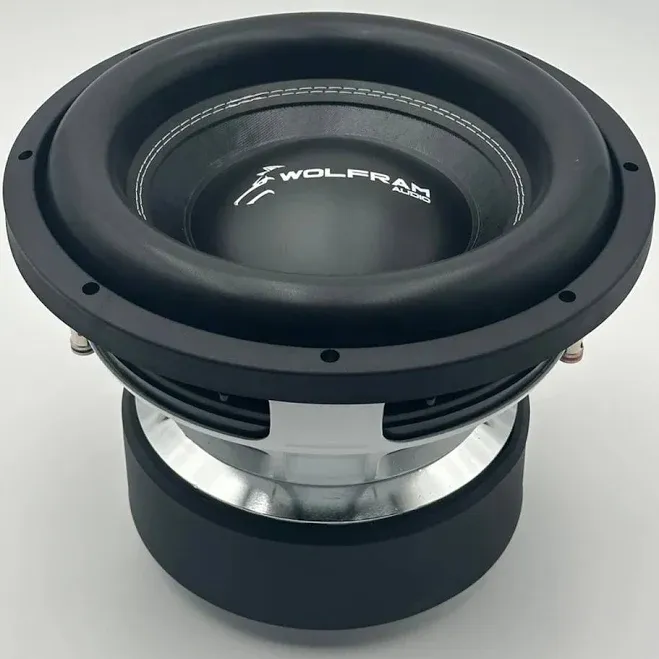

Wolfram Audio Hg-12 V2 Subwoofer - 12-inch, Dual 2-Ohm DVC - Black pressed paper cone, high-roll rubber surround, large double-stacked magnet, push terminals

Hg-12 V2 | 12" SPL Subwoofer

This product is permanently discontinued with no direct replacement.

ALL NEW HG-v2 : New motor and soft part design along with the all time favored PE Coil Wolfram Audio introduces the new revision of our Hg-12: our unrivaled 12" SPL woofer when it comes to power, performance, and reliability. The Hg series features a massive 300oz magnet coupled with a heavily vented magnetic gap for extreme cooling. The Hg-12 utilizes a 3" 4-layer high temperature voice coil for an intense amount of power handling. NOT COMPATIBLE WITH ORIGINAL HG-12 Specifications: Wolfram Audio Hg-12 - 12" SPL Subwoofer Dual 1 or 2 Ohm Voice Coil Configuration Peak Power : 4000 Watts RMS Power : 2000 Watts Competition Grade Pressed Paper Cone Stitched High Roll Foam Surround Massive Triple Stacked Magnet 4 layer Nomex spider 3" Flat AL Wire Voice Coil 4 Gauge Push Terminals Sensitivity : 85.9 dB Fs : 34.9 Hz Re : 1 or 2 Ohm Qms : 2.18 Qes : 0.43 Qts : 0.36 Nref : 0.245% Cms : 0.08 mm/N Bl : 14.6 Vas : 25.9 L Mms : 251.9 gr Xmax : 37mm (One-Way) Enclosure Recommendations: 1.0 - 1.25 ft³ Sealed 2.0 - 2.5 ft³ Ported (Tuned 32hz - 34hz) Mounting Depth: 8 1/2" Cutout Diameter: 11 1/4" Displacement: 0.13 ft³

Used in 0 builds

View All Wolfram Audio Subwoofers

Acoustic Data Pending

Thiele-Small parameters for this driver are being processed by our enrichment pipeline.

Need this installed?

Browse 41+ professional car audio installers in our network

Find an Installer
