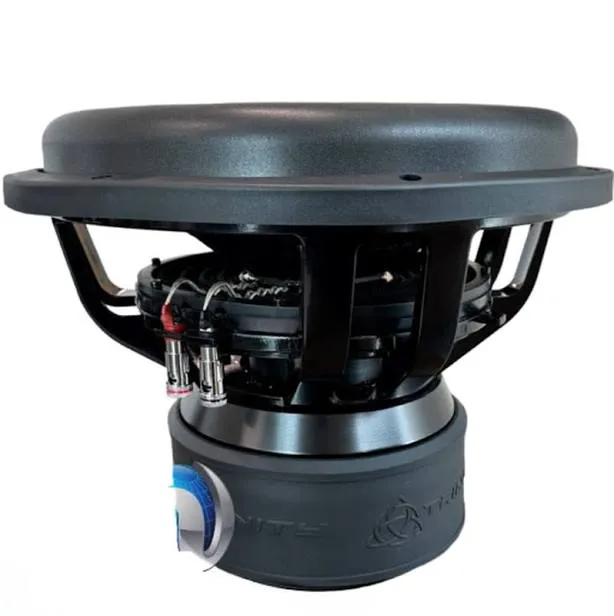

Trinity Audio H15 Subwoofer

Name: Trinity Audio H15 Subwoofer
Brand: Trinity Audio

The Trinity Audio H15 is a high-performance subwoofer featuring a 15-inch cone with dual 1 voice coil configuration. Rated at 9000W RMS. Designed for deep bass reproduction and high SPL output.

Used in 0 builds

View All Trinity Audio Subwoofers

Specifications

rms watts

9000 W

size inches

voice coil config

Thiele-Small Parameters

Measured at small signal levels per AES standards

Electromechanical

F_s(Resonant frequency)

29 Hz

R_e(DC resistance)

3.6 Ω

BL(Force factor)

27.4 T·m

Q Factors

Q_ts(Total Q)

0.42

Q_es(Electrical Q)

0.45

Q_ms(Mechanical Q)

5.91

Compliance & Mass

V_as(Equiv. volume)

44.2 L

M_ms(Moving mass)

474.6 g

C_ms(Compliance)

0.05 mm/N

S_d(Piston area)

792.1 cm²

Excursion

X_max(Linear excursion)

32 mm

Sensitivity

SPL₀(1W/1m)

87.1 dB

Power Handling

P_e(RMS power)

3500 W

Parameters measured per AES2-1984 (r2003) standards. Small-signal parameters valid within linear operating region.
