Home/Equipment/Subwoofers/Sundown Audio/SA-Classic 12" Subwoofer

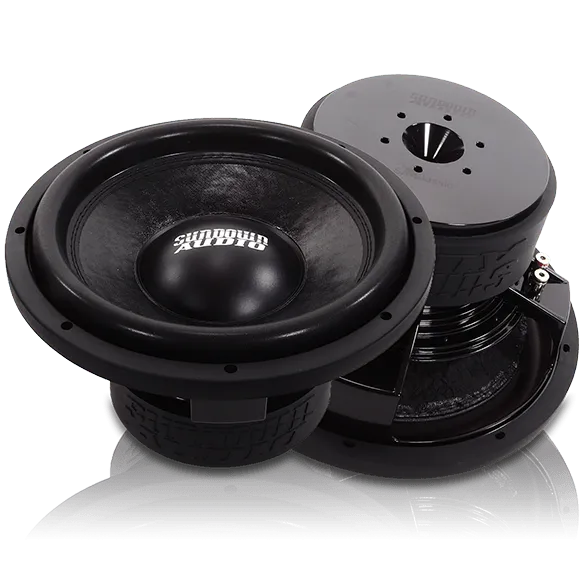

SA-Classic 12" Subwoofer

1000 Watt RMS/ 2000 Watt Peak Dual 2 or 4 ohm voice coils Optimized for small ported, sealed, & band-pass enclosures Large aluminum Faraday ring for smooth acoustic response High strength cast aluminum frame Low distortion motor construction High-temperature voice coil wire Spring-loaded terminals Stitched-on “XL” tinsel lead wires The SA Classic sub is a stunning combination of value, power handling, and deep excursion. It features a cast aluminum frame that houses a bulletproof custom 2.5-inch voice coil, robust double-layered Nomex spider, and SPL competition-grade paper cone. These components are built into a flexible design that works well in any type of enclosure. Specifications T/S SPECS SA CLASSIC 12" D2 SA CLASSIC 12" D4 RE (Ohms) 4.57 7.07 FS (Hz) 33.71 33.96 VAS (L) 21.21 24.63 Qes 0.58 0.55 Qms 5.34 5.15 Qts 0.52 0.49 Le (mH) 3.40 4.84 BL (NA) 21.64 25.67 Mms (Grams) 280 237 Cms (uM/N) 79.43 92.27 Sens (dB @ 1w/1m) 83.21 84.22 Xmax 19mm 19mm Enclosure Specifications SA CLASSIC 12" Sealed Enclosure 1.0 cu ft Ported Enclosure 1.75 cu ft Recommended Tuning 35Hz Recommended Port Area 26 sq in Displacement 0.14 cu ft Depth 6.5″ Outside Diameter 12.625″ Cut-Out 11.125″ Physical Dimensions Download Enclosure Designs .Zip File

Used in 0 builds

View All Sundown Audio Subwoofers

Specifications

rms watts

1000 W

impedance ohms

2 Ω

voice coil config

DVC

Thiele-Small Parameters

Measured at small signal levels per AES standards

Impedance:

Electromechanical

F_s(Resonant frequency)

33.71 Hz

R_e(DC resistance)

4.57 Ω

L_e(Inductance)

3.4 mH

BL(Force factor)

21.64 T·m

Q Factors

Q_ts(Total Q)

0.52

Q_es(Electrical Q)

0.58

Q_ms(Mechanical Q)

5.34

Compliance & Mass

V_as(Equiv. volume)

21.21 L

M_ms(Moving mass)

280 g

C_ms(Compliance)

0.0794 mm/N

Excursion

X_max(Linear excursion)

19 mm

Parameters measured per AES2-1984 (r2003) standards. Small-signal parameters valid within linear operating region.
