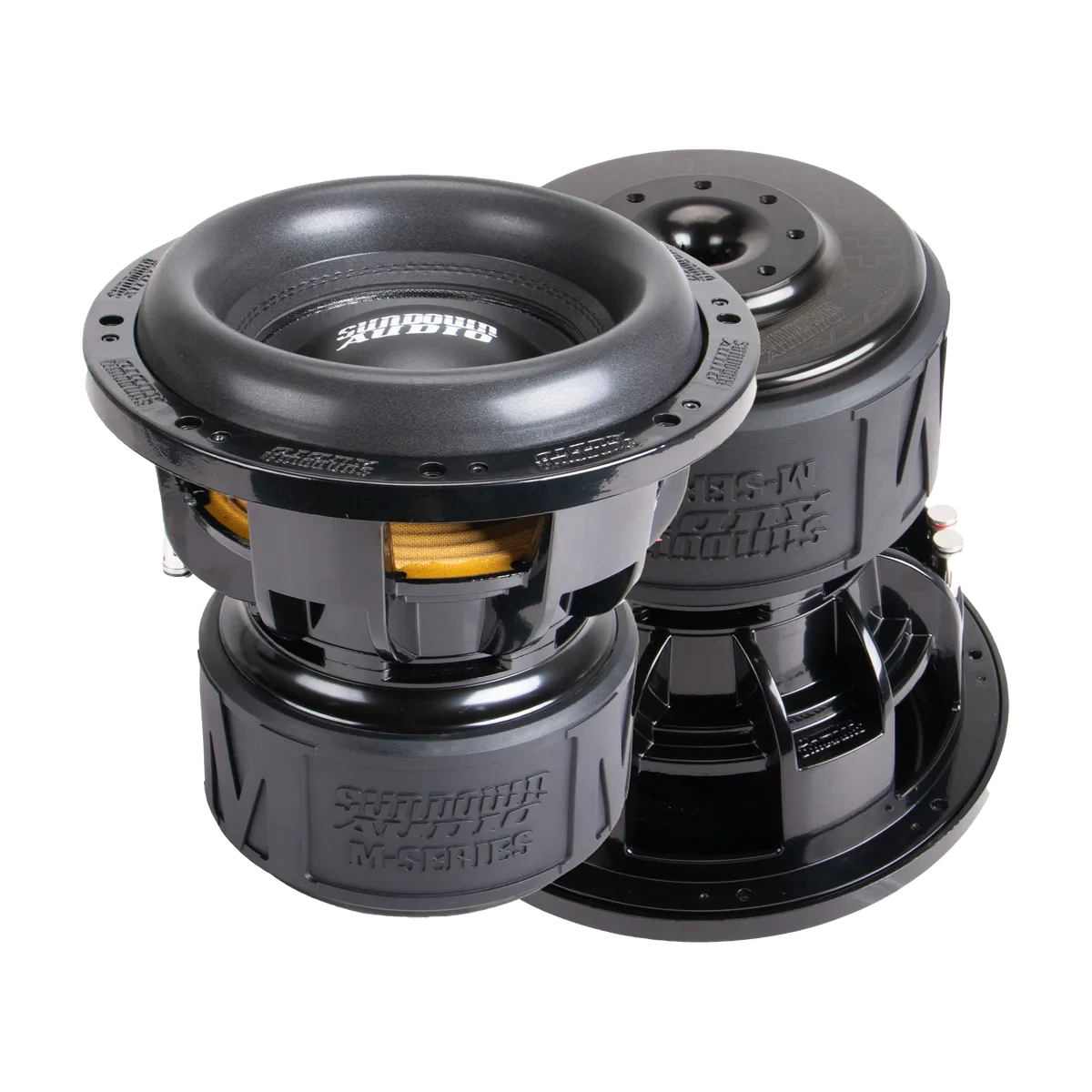

Sundown Audio M-Series M10 10" 2000W Subwoofer

4000w Peak / 2000w RMS Available in Dual 1 and Dual 2 Ohm Configurations Mega Roll Surround and Frame Etched All Black Backplate Quad Stack Magnet Structure Specifications RE (Ohms) 2.27 4.19 FS (Hz) 37.825 37.736 VAS (L) 7.669 7.793 Qes 0.789 0.761 Qms 4.931 4.847 Qts 0.68 0.658 Le (mH) 1.887 3.682 BL (NA) 17.339 23.82 Mms (Grams) 439.5005 434.5335 Cms (uM/N) 40.281 40.935 Sens (dB @ 1w/1m) 78.95 79.14 Xmax 35mm 35mm T/S SPECS M10D1 M10D2 Enclosure Specifications Sealed Enclosure Not Recommended Ported Enclosure 1.5 cu ft Recommended Tuning 32Hz Recommended Port Area 24 sq in 4th Order Sealed Side 0.75 cu ft 4th Order Ported Side 2.25 cu ft 4th Order Port Area 45 sq in 4th Order Port Length 8" Displacement 0.2 cu ft Depth 10.09″ Outside Diameter 11.65″ Cut-Out 10.01″ Physical Dimensions Download
