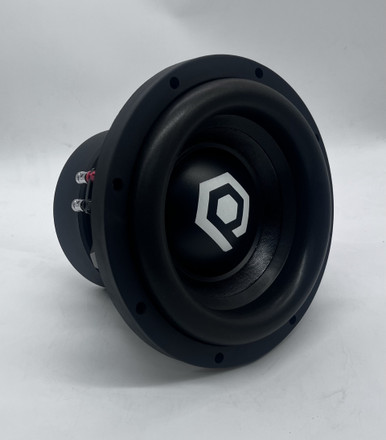

SoundQubed HDS3.3 Series Subwoofer 10 Inch 3" DVC 1500w/3000w D2

Product Overview tailwind.config = { theme: { extend: { colors: { 'sq-green': '#00F100', 'sq-green-dark': '#00CC00', 'sq-green-light': '#33FF33', }, fontFamily: { 'poppins': ['Poppins', 'sans-serif'], 'karla': ['Karla', 'sans-serif'], } } } } body { font-family: 'Poppins', sans-serif !important; } 10 Series • Dual 2Ω HDS3.3-10D2 Precision Punch with Power 10" Dual 2 Ohm Subwoofer | 1500W RMS / 3000W Peak Step into the world of clean, controlled bass with the HDS3.3-10D2. Designed for daily drivers who crave tight low-end punch and long-term durability, this 10" sub features a 3" voice coil , 160 oz magnet , and a 13 mm Xmax for bold but refined bass performance. Versatile Enclosures Ideal for sealed or ported enclosures Daily Driver Ready Perfect for daily systems that demand clarity and consistent output Deep Frequency Fs of just 27.6 Hz means this sub digs deep! Bring musicality and SPL together with the HDS3.3-10D2. Technical Specifications Power Handling RMS Power 1500 W Peak Power 3000 W Physical Specifications Woofer Size 10" Magnet Weight 160 OZ Coil Diameter 3 inch Coil Length 40 mm Xmax 13 mm Thiele-Small Parameters Fs (Resonant Frequency) 27.6 Hz Impedance 2+2 Ohm Qms 5.35 Qes 0.5 Qts 0.43 Vas 18.8 L Le 2.44 mH η0 (Efficiency) 0.08% Performance Cms 0.12 mm/N Sensitivity (1W / 1M) 82.5 dB BL 18.6 N/A SD 442 CM² Enclosure Recommendations S Sealed Enclosure 0.55 - 1.25 ft³ Optimal for tight, accurate bass response P Ported Enclosure 0.78 - 1.63 ft³ Ideal for maximum SPL and efficiency Mounting Dimensions A - Outer Diameter 270mm 10.63" B - Mounting Diameter 235mm 9.25" C - Cutout Diameter 186mm 7.32" D - Mounting Depth 177mm 6.97" Dimension Metric Imperial A - Outer Diameter 270mm 10.63" B - Mounting Diameter 235mm 9.25" C - Cutout Diameter 186mm 7.32" D - Mounting Depth 177mm 6.97" BORN TO BE LOUD Sound Qubed Reviews (No reviews yet) Write a Review
