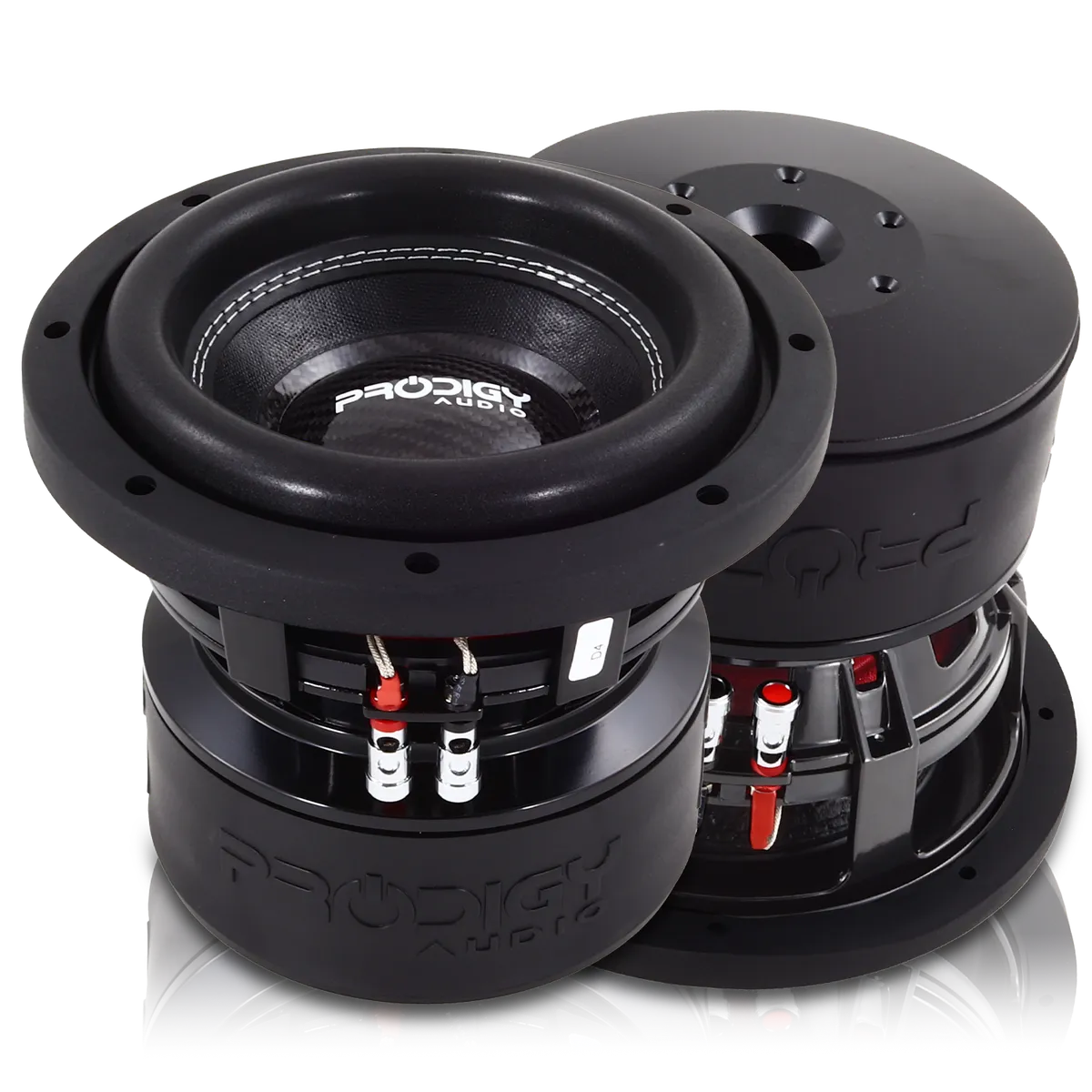

8" NB5 Series Subwoofer by Prodigy Audio™

The NB5 series 8 inch is a 800 watt rms subwoofer. Starting with the motor design, we spent a lot of time optimizing the design to incorporate a large inner pole, upper and lower, Faraday shorting ring which helps to reduce any distortion caused by inductance throughout the movement range of the cone. We chose a 2.50 diameter coil that has a very long winding width, with the wire being made of flat aluminum. Overall, they have 15mm of excursion one way at 70% BL and have a 28mm of X-mech forward and 50mm downward x-mech clearance before soft parts crash into hard parts. The motor has 180 ounces of ferrite rings and utilizes a vented pole design with coil gap radial vents for moving heat quickly out of the gap. Mated to the motor is a heavy duty cast aluminum frame that serves as an excellent heat exchanger. As the motor gets hotter the mass of aluminum helps to dissipate the overall heat. Nomex spiders with heavy stitched in tinsel leads connect with the competition grade treated paper cone, and the heavy-duty foam surround that complete the make-up of this woofer. Features: 15mm of x-max one way at 70% BL Product RMS Power 800 watts Available Coil Options: D2/D4 Vented magnetic gap Black Aluminum 2.50” voice coil for superior power handling High Temperature flat aluminum voice coil wire Large Aluminum ID Faraday Ring Chrome 4awg Push Terminals Stitched on Double Tinsel Leads Heavy Cast aluminum frame Extreme duty Nomex spiders Specifications: NB5-8d2 NB5-8d4 RE 3.6 6.8 FS 38.77 39.995 VAS 6.923 7.21 Qes 0.489 0.544 Qms 2.512 2.598 Qts 0.410 0.450 BL 20.23 22.541 Mms (g) 164.5 151.33 Cms 95.517 104.2 Sens 82.1 104.8 Xmax 17 17 Cut Outs & Sizes Model NB5-8 Depth 6.500" Cutout 7.375" Overall Dia. 8.625" Displacement 0.09 ft3 Enclosure Design
