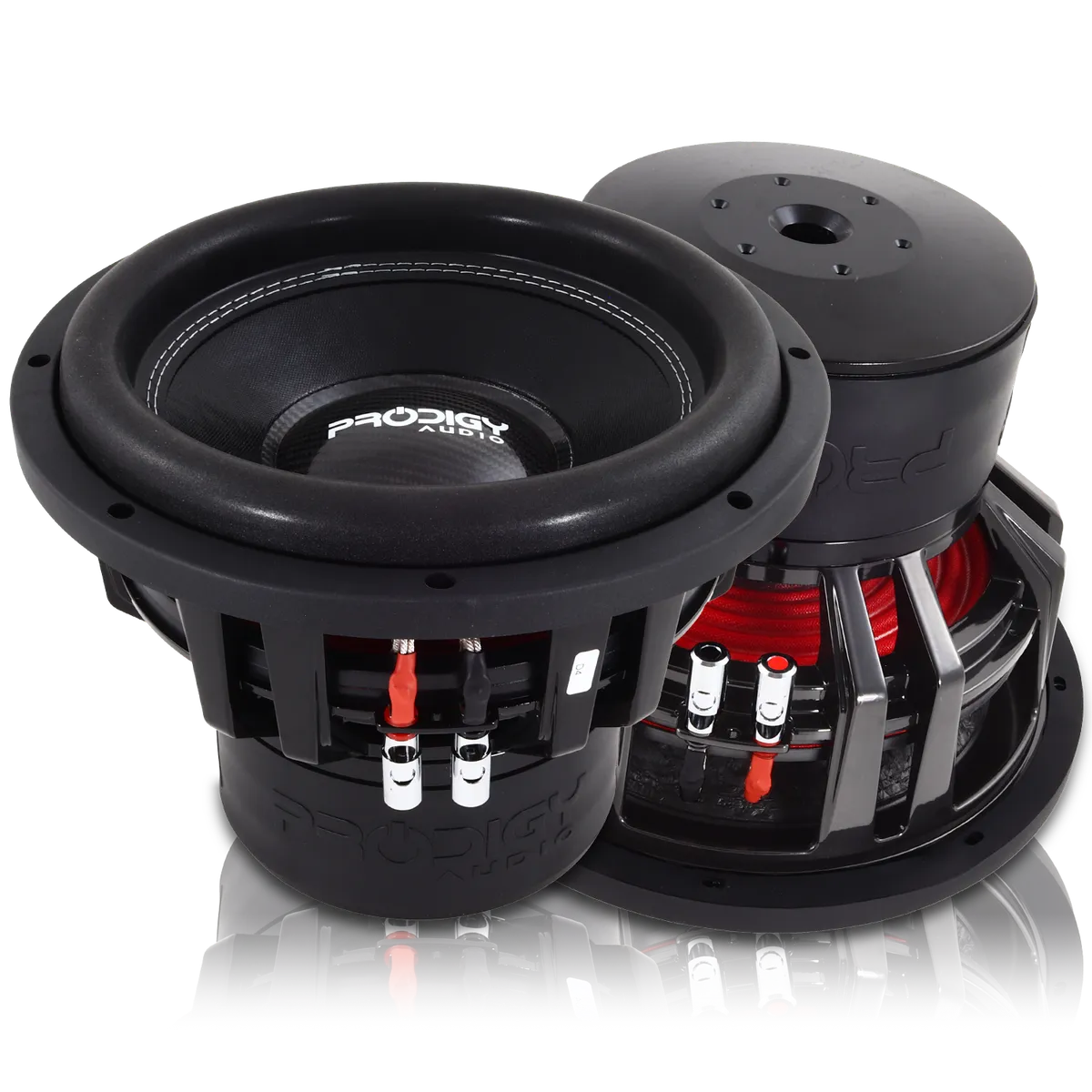

12" NB3 Series Subwoofer by Prodigy Audio™

The NB3 Series of woofers offer a slim line depth for working well under and behind truck seats as well as other tight spaces. The 12” version, for example, is only 3.375” deep. These are designed to optimally perform in extremely small enclosures and in most truck prefab enclosures. Housed inside of a rugged metal basket, you will find an oversized 80 Ounce ferrite magnet that uses a 3.0" voice coil with the ability to withstand temperatures up to 500f and has a FEA designed center pole vent for removing the heat btu’s from the motor and voice coil gap. The spiders are made of a high-quality Cotton and Nomex blend with stitched in flat tinsel leads. This woofer is a work horse and really shines in small, sealed or ported enclosures. Features: RMS Power 800 Watts 10” and 12” Sizes Xmax of 11mm one way at 70% BL High temperature 4 layer copper voice coil Black aluminum 3.0” voice coil former Dual 4 ohm coil Treated paper cone with rubber surround Center pole vent optimized for moving BTU’s Strong steel frame with logos Quality chrome push terminals Flat stitched tinsel leads Specifications: NB3-12d4 RE 6.7 FS 36.200 VAS 29.665 Qes 0.618 Qms 2.266 Qts 0.485 BL 23.96 Mms (g) 189.22 Cms 73.668 Sens 88.9 Xmax 11 Cut Outs & Sizes Model NB3-12d4 Depth 3.375" Cutout 10.625" Overall Dia. 12.250" Displacement 0.13 ft3 Enclosure Design
