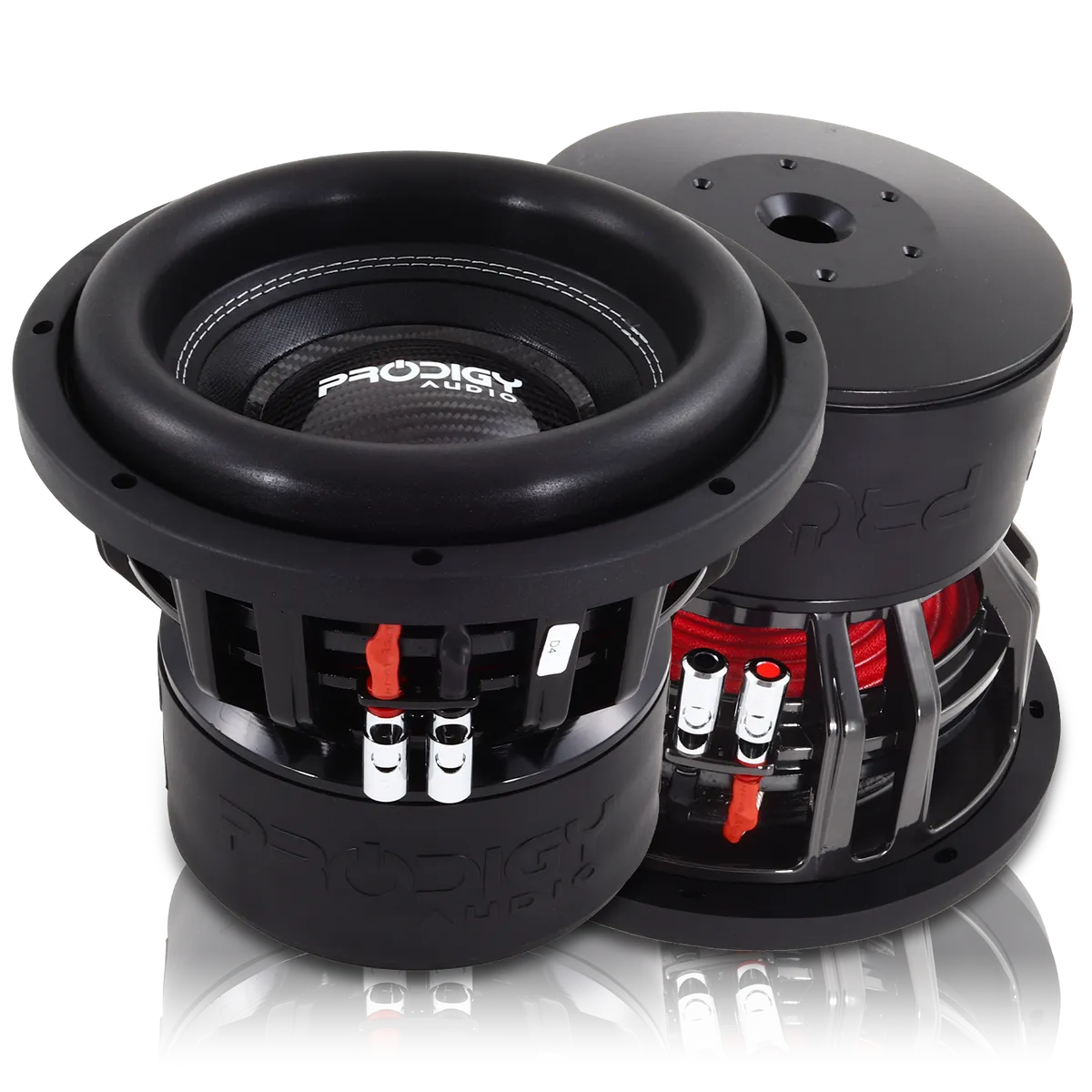

10" NB3 Series Subwoofer by Prodigy Audio™

The NB3 Series of woofers offer a slim line depth for working well under and behind truck seats as well as other tight spaces. The 10” version, for example, is only 3.00” deep. These are designed to optimally perform in extremely small enclosures and in most truck prefab enclosures. Housed inside of a rugged metal basket, you will find an oversized 70 ounce ferrite magnet that uses a 2.5” voice coil with the ability to withstand temperatures up to 500f and has a FEA designed center pole vent for removing the btu’s from the motor and voice coil gap. The spiders are made of a high-quality Cotton and Nomex blend with stitched in flat tinsel leads. This woofer is a work horse and really shines in small, sealed and ported enclosures. Features: RMS Power 500 Watts 10” and 12” Sizes Xmax of 11mm one way at 70% BL High temperature 4 layer copper voice coil Black aluminum 2.5” voice coil former Dual 4 ohm coil Treated paper cone with rubber surround Center pole vent optimized for moving BTU’s Strong steel frame with logos Quality chrome push terminals Flat stitched tinsel leads Specifications: NB3-10d4 RE 6.5 FS 36.406 VAS 14.43 Qes 0.495 Qms 2.282 Qts 0.407 BL 23.365 Mms (g) 151.63 Cms 74.178 Sens 86.9 Xmax 11 Cut Outs & Sizes Model NB3-10d4 Depth 3.000" Cutout 9.125" Overall Dia. 10.250" Displacement 0.10 ft3 Enclosure Design
