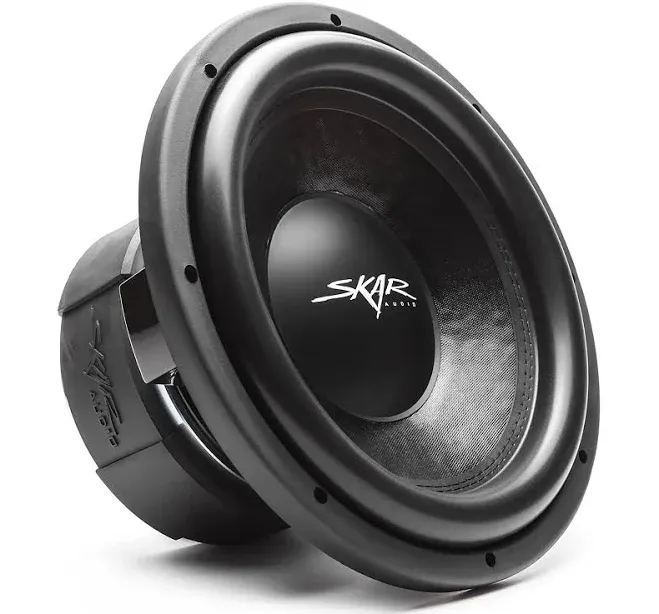

DDX-12 12" 1,500 Watt Subwoofer

The Skar Audio DDX-12 12" 1,500 Watt Subwoofer is a high-performance subwoofer featuring a 12-inch cone with dual 2 voice coil configuration. Rated at 500W RMS. Thiele-Small parameters: Fs=33.8Hz, Qts=0.34. Maximum linear excursion (Xmax): 15mm. Designed for deep bass reproduction and high SPL output.

Used in 0 builds

View All Skar Audio Subwoofers

Specifications

rms watts

500 W

size inches

voice coil config

Thiele-Small Parameters

Measured at small signal levels per AES standards

Electromechanical

F_s(Resonant frequency)

33.8 Hz

BL(Force factor)

25.5 T·m

Q Factors

Q_ts(Total Q)

0.34

Compliance & Mass

V_as(Equiv. volume)

24.8 L

M_ms(Moving mass)

243 g

C_ms(Compliance)

0.07 mm/N

S_d(Piston area)

510 cm²

Excursion

X_max(Linear excursion)

15 mm

Sensitivity

SPL₀(1W/1m)

88 dB

Power Handling

P_e(RMS power)

500 W

Parameters measured per AES2-1984 (r2003) standards. Small-signal parameters valid within linear operating region.
