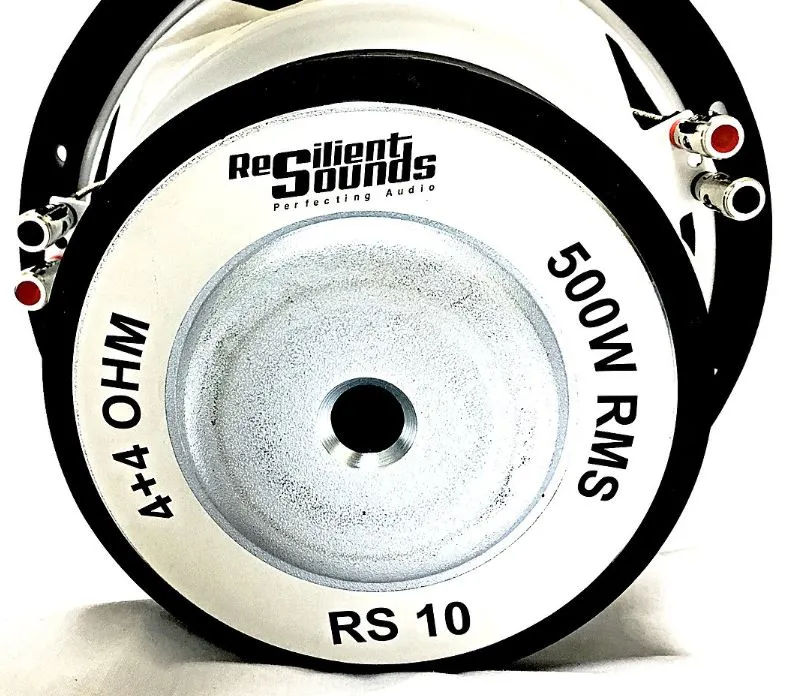

Resilient Sounds RS 10 Subwoofer - 500W RMS, 4+4 OHM - Silver and black with dual terminals and robust design

Resilient Sounds RS Entry-Level 500W D4 Subwoofer

Name: Resilient Sounds RS Entry-Level 500W D4 Subwoofer
Brand: Resilient Sounds
Price: 149.99 USD

The Resilient Sounds Resilient Sounds RS Entry-Level 500W D4 Subwoofer is a high-performance subwoofer featuring a 18-inch cone. Designed for deep bass reproduction and high SPL output.

Used in 0 builds

View All Resilient Sounds Subwoofers

Specifications

rms watts

500 W

size inches

impedance ohms

2 Ω

mounting depth in

5.75"

Thiele-Small Parameters

Measured at small signal levels per AES standards

Electromechanical

F_s(Resonant frequency)

31.4 Hz

R_e(DC resistance)

8 Ω

L_e(Inductance)

3.66 mH

BL(Force factor)

25.6 T·m

Q Factors

Q_ts(Total Q)

0.36

Q_es(Electrical Q)

0.4

Q_ms(Mechanical Q)

4.38

Compliance & Mass

V_as(Equiv. volume)

23.8 L

M_ms(Moving mass)

164.6 g

C_ms(Compliance)

0.16 mm/N

Excursion

X_max(Linear excursion)

8 mm

Sensitivity

SPL₀(1W/1m)

84.5 dB

Power Handling

P_e(RMS power)

500 W

Parameters measured per AES2-1984 (r2003) standards. Small-signal parameters valid within linear operating region.
