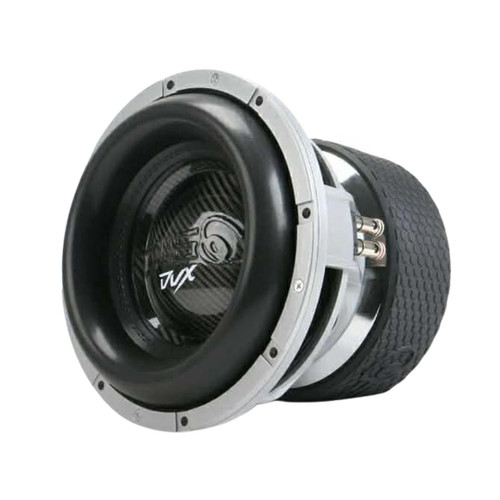

Down4Sound DOWN4SOUND DVX 10" SUBWOOFER - 2 OHM DVC | 1700W RMS

Description Warranty Information Additional Information 0 Reviews Description The DOWN4SOUND DVX-10 D2 is engineered for listeners who demand tight, authoritative, and durable low-frequency performance in a compact 10-inch platform. Designed around a high-strength motor, extended linear excursion, and a rigid carbon fiber dustcap, the DVX-10 D2 delivers controlled, punchy bass that excels in daily systems, demo setups, and high-power compact builds. With a dual 2-ohm voice coil configuration , the DVX-10 D2 offers flexible wiring options while maintaining excellent motor control, thermal efficiency, and long-term reliability under sustained load. Key Features High RMS power handling for demanding systems Dual 2-ohm voice coil configuration 3-inch high-temperature copper voice coil Long linear excursion for controlled low-frequency output Carbon fiber dustcap for rigidity and reduced flex Advanced motor ventilation for improved cooling Heavy-duty suspension designed for daily and high-output use Compact 10-inch format with serious low-end authority Technical Specifications ( – DVX-10 D2) (Measured via LinearX) Revc (DC Resistance): 3.79 Ω Resonance Frequency (Fs): 38.07 Hz Qms: 3.110 Qes: 0.488 Qts: 0.422 Mms (Moving Mass): 379.82 g Cms (Compliance): 46.02 µm/N BL Product: 26.53 T·m Vas: 7.34 L Sd: 346.36 cm² Sensitivity (SPL): 81.3 dB Xmax: 31 mm Engineering and Construction Extended pole piece for improved linearity and cone control Dual-flared pole venting for low-noise airflow Rear gap ventilation to reduce voice-coil temperature during sustained playback Large motor structure for strong magnetic control Long-fiber spider system for stable, repeatable suspension behavior Carbon fiber dustcap for added strength and professional appearance Recommended Enclosure Ported Enclosure (Recommended) Net Volume: ~1.1 – 1.3 cubic feet Tuning Frequency: ~34–35 Hz Displacement: .21 cu fts This enclosure provides strong low-end extension, fast transient response, and excellent output for daily music while maintaining control and efficiency. Physical Dimensions Cutout Diameter: ~9.45 in (240 mm) Mounting Depth: ~8.86 in (225 mm) Overall Diameter: ~11.42 in (290 mm) Motor Diameter: ~10.04 in (255 mm) Weight: ~45 lb Why Choose the DVX-10 D2 Compact footprint with authoritative bass output Designed for clean, controlled low-frequency reproduction Dual 2-ohm coils allow flexible amplifier wiring Carbon fiber dustcap enhances durability and aesthetics Excellent balance of daily drivability and output capability View All Close Warranty Information Warranty Information Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier. All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our website. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior to the return of the product or if no defect is found you are required to pay for return shipping only. At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return! * Extended additional warranty purchased on amplifiers take effect from the date of purchase and must also be stated on original sales invoice or receipt. Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/ Down4Sound - Hours of Operation Monday 6am - 9pm PDT Tuesday 6am - 9pm PDT Wednesday 6am - 9pm PDT Thursday 6am - 9pm PDT Friday 6am - 9pm PDT Saturday 8am - 4pm PDT Sunday Closed View All Close Additional Information Model: DVX Ohm: 2 Subwoofer Size: 10 Product Type: Subwoofer Subwoofer Type: DUAL VOICE COIL View All Close 0 Reviews View All Close
