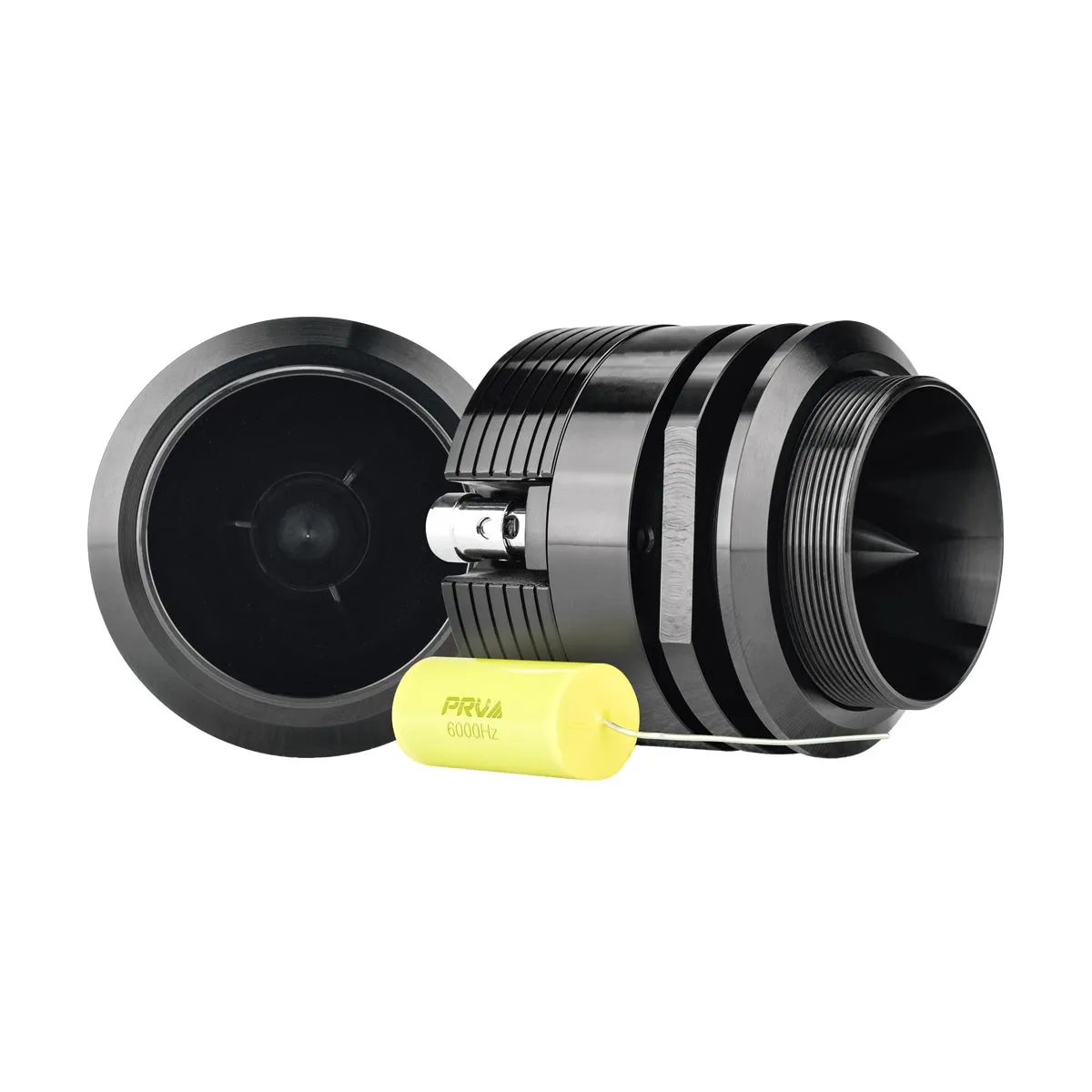

PRV Audio PAIR of TW400Ti-Nd-4 v2 1" 240W 4-Ohm NEO Car Pro Bullet Tweeters

New Evolution of our 1″ exit neodymium bullet tweeters!• Smaller – Motor has been re-designed to be more compact on its total mounting depth.• Improved Designed – Featuring a new concept, easy to replace diaphragm ( solderless ) PRV Audio’s TW400Ti-Nd-4 v2 super tweeter (also referred to as a bullet tweeter) is designed to add high output, high frequency response to any speaker system. The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 106 dB from 4,500 to 20,000 Hz. Not only does this driver look as good as it sounds, it is also able to take a ton of power! Up to 120 watts of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz to keep up with the most demanding professional audio, high output home audio, and high SPL car audio systems. A capacitor is included for protection from damaging frequencies at high power. Mounting hardware included. GENERAL SPECIFICATIONS Nominal impedance 4 Ohms Nominal Power Handling* 60 Watts Continuous Program Power (RMS)** 120 Watts Max Peak Power*** 240 Watts Sensitivity 2.00V at 1m 106 dB Recommended High Pass CrossoverFor Full Power Handling 6000 Hz12db/oct Crossover Frequency Response at -10dB 4,500 – 20,000Hz Voice Coil Diameter 1.0″ (25.4 mm) Voice Coil Wire Aluminum Voice Coil Former Material Kapton Diaphragm Material Titanium Flux Density 1.45 T Magnet Material Neodymium *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range. **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation. ***Max Peak Power is the maximum power operation for the speaker, this power is allowed j

Specifications

brand
PRV Audio
model
TW400Ti-Nd-4 v2
peak watts
120 W
speaker type
tweeter
impedance ohms
4 Ω
Acoustic Data Pending

Thiele-Small parameters for this driver are being processed by our enrichment pipeline.
