Stetsom DSP / Processors

Stetsom is a Brazilian amplifier manufacturer known for producing some of the most powerful and efficient car audio amplifiers in the world. Founded in Brazil, they specialize in Class D amplifiers that deliver massive power in compact, lightweight designs. Popular with SPL competitors and bass enthusiasts globally, Stetsom amplifiers—like the EX and Vulcan series—are engineered to handle extreme power demands while maintaining reliability in high-heat conditions.

10 Products

Visit Website

DSP FLOATING

Learn more about the product’s features and specifications in the user manual:

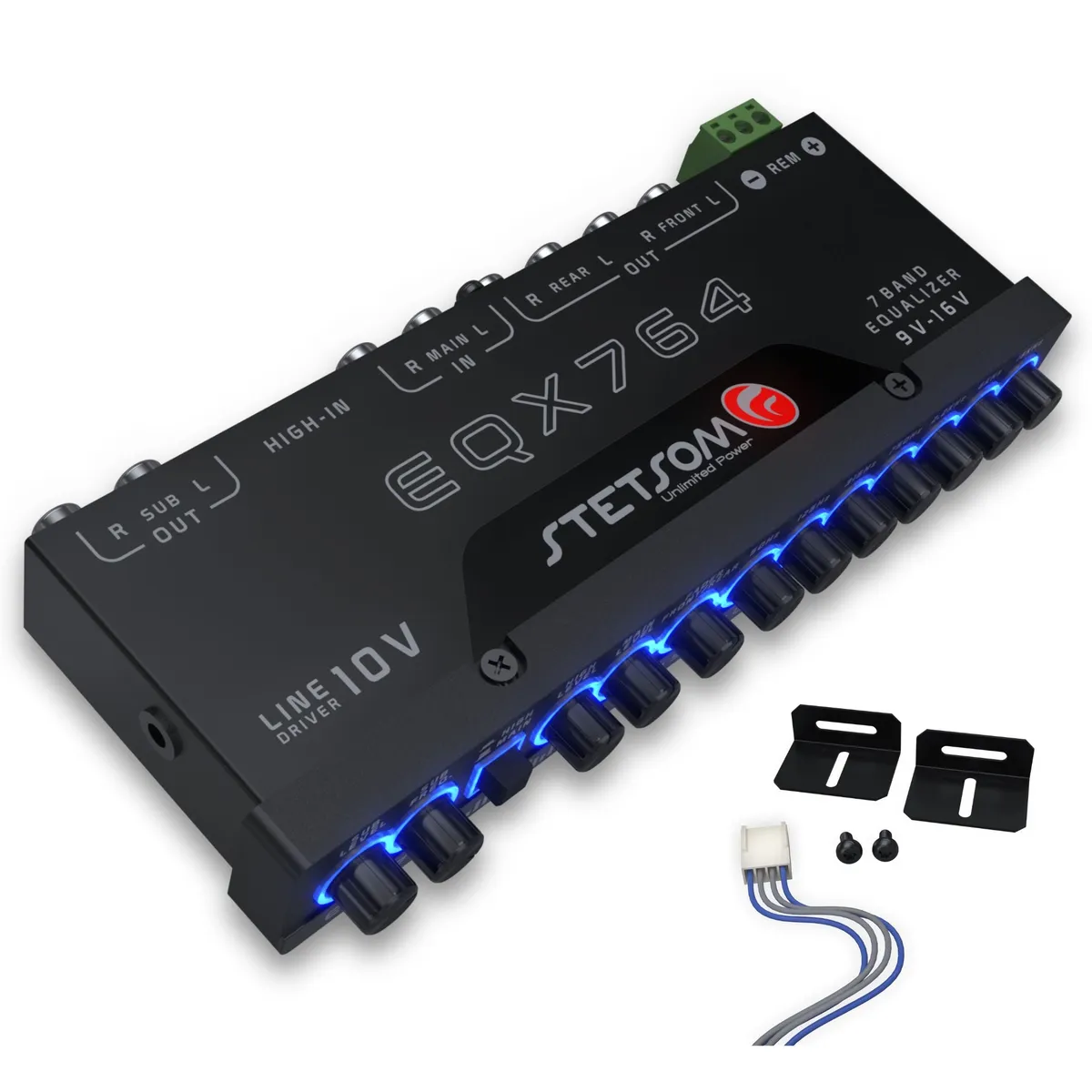

EQX764 Graphic Equalizer 7 Band Equalization Modern Blue LED

Find out more about the product and its features in its user manual:

Modular Central - SMC Remote Controller for Stetsom DSP Products

The SMC is a wired remote controller that allows you to view and change configurations in STETSOM products. It can be attached to the car's dashboard, facilitating usability and access to the settings of the product connected to it. Compatible with STX2436BT processor

STX 2436 Bluetooth DSP Crossover & Equalizer 4 Output Channel Full Digital Signal Processor 2.4

The STX2436BT is a digital audio processor that offers a variety of high-precision adjustments and settings to enhance the performance of your audio system. Through Bluetooth communication, the processor’s information can be viewed and configured remotely using smartphones with Android or iOS systems. Its digital signal processor (DSP) allows real-time modification of equalizations, crossover filters, alignment, gain control, phase inversion, limiter, digital input/output routing, and other treatments. Its exclusive remote sequencer feature (SEQUENCER) makes it possible to configure the programmed startup and shutdown of up to three products from the remote startup connections (S1, S2, and S3). 1. SEQUENCER 2. REM IN 3. NEGATIVE POWER CONNECTOR (GND) 4. POSITIVE CONNECTOR (+BAT) 5. SMC INPUT 6. AUDIO INPUT WITH WIRE CONNECTION (HIGH INPUT) 7. AUDIO INPUT WITH RCA CONNECTION (INPUT) 8. MAX LEDs (INPUT CHANNELS) 9. COMMAND BUTTON 10. AUDIO OUTPUTS CHANNELS (OUTPUT) 11. LIMITER LEDs (OUTPUT CHANNELS) Technical Specifications Number of Channels Input: 2 x RCA (A+B) or 2 x HIGH INPUT (A+B) Output: 4 (1, 2, 3, 4) Graphic Equalizer 15 Bands (gain ±12dB) Graphic Equalizer Presets 12 Parametric Equalizer 5 Bands (1 Input + 4 Output) (gain ±12dB, Factor Q 0.4 a 10.0) Crossover with Variable Freq. Butterworth: 12/18/24/36 dB/8ª Linkwitz-Riley: 12/18/24/36 dB/8ª Crossover Presets 11 Routing between input/output A, B ou A+B Alignment 0ms ~ 8ms (275cm) Phase Inversion 0° ~ 180° Limiter Threshold: -24dB ~ 0dB Attack: 0.1ms ~ 100.0ms e Release: 1ms ~ 1600ms (manual or auto.) Master Level 0 ~ 100% Output Gain -45dB ~ +15dB per output Frequency Generator 10Hz ~ 22kHz and Level -60 ~ 0dB Frequency Scan Starting and ending frequency: 10Hz ~ 22kHz Level: -60dB ~ 0dB Pink Noise Generator Gain: -60dB ~ 0dB Battery Voltage Monitor Current, minimum and maximum voltage Password 6-digit password Input Impedance

STX 2448 DSP Crossover & Equalizer 4 Channel Full Digital Signal Processor (Sequencer) 2.4

Through an LCD display and an intuitive interface, it allows real-time audio adjustments. The STX2448 features 2 audio inputs (A and B) and 4 independent outputs, and allows you to choose the audio source (A, B or A + B) for each output. It has an integrated equalization system, with 15-band graphic equalizer, manual tuning or through 12 presets (Flat, Loudness, Bass Boost, Mid Bass, Treble Boost, Powerful, Electronic, Rock, Hip Hop, Pop, Vocal and Pancadão). For professional equalizer settings, it has 5 Parametric Equalizers with gain control, frequency specific setting and equalizer bandwidth. Allowing fine adjustments and detailed equalization control. The Crossover function enables you to precisely define cut frequencies, attenuation rates and topology of the LowPass and HighPass filters with Butterworth and Linkwitz-Riley filters (12/18/24/36/48 dB / 8ª). To aid in the protection of amplifiers and loudspeakers, the STX2448 features a Limiter with Dynamic Attack-Release system that dynamically controls the Attack and Release parameters in real time, providing security and sound fidelity. In the audio treatment, it also has Alignment capabilities through High Accuracy Delay, Phase Inversion, Independent Gain by Output and Master Level. It also has the functions of management, Save and Load Settings in memory, Security Password that blocks the editing of the parameters, Marquee / Text Display and Language Selection (English, Spanish, Portuguese). Overview SEQUENCER: It allows sequencial activation of other products through the remote activation (REM) connection. REM IN: Allows automatic activation of the amplifier when turning on the radio/player. NEGATIVE POWER CONNECTOR (GND): Connect to the negative terminal of the battery. POSITIVE CONNECTOR (+BAT): Connect to the positive terminal of the battery. It is recommended to use a fuse for external protection of 1A. DISPLAY LCD: It allows visualization and interaction with the processor system. ENCODE

STX104 Five-Channel Audio Crossover Output Signal Processor

The Stetsom STX104 Five-Channel Audio Crossover Output Signal Processor is a quality car audio product from Stetsom.

STX2448 DSP Crossover Equalizer Four-Channel Full Digital Signal Processor

The Stetsom STX2448 DSP Crossover Equalizer Four-Channel Full Digital Signal Processor is a quality car audio product from Stetsom.

STX2448 FLOATING Full Professional DSP Digital Signal Processor PRO, Crossover & Equalizer, Remote Sequencer 2.4

About this item 🔊【UPDATED VERSION】The new Stetsom Audio Processor STX 2448 FLOATING has everything the standard STX2448 has and much more, specially designed for those who care about audio quality. 🔊【FLOAT MODE】The DSP Floating mode provides different flows and features compared to standard DSPs. It allows the processor to be loaded with different audio streams and resources, expanding the range of possibilities for configuring various systems. Available in Standard and PRO modes. 🔊【TWO TYPES OF INPUT】RCA & High Signal (factory car stereo), both share the same input A & B. 🔊【INPUT LEVEL ADJUSTMENT】Allows you to adjust the level of input audio signals. This feature also has two LEDs indicating if the input signal is saturated (CLIP) on input channels A & B. 🔊【ENCODER BUTTON】The improved encoder button has rotation and click actions, that will lead you through all the device configurations. Stetsom STX2448 FLOATING Full Professional DSP Digital Signal Processor PRO, Crossover & Equalizer, Remote Sequencer

STX2848 DSP Crossover Equalizer Eight-Channel Full Digital Signal Processor (Sequencer) 2.8

The Stetsom STX2848 DSP Crossover Equalizer Eight-Channel Full Digital Signal Processor (Sequencer) 2.8 is a quality car audio product from Stetsom.

STX84 Four-Channel Crossover Two Inputs Four Outputs Stereo Mono

The Stetsom STX84 Four-Channel Crossover Two Inputs Four Outputs Stereo Mono is a car audio accessory. Designed to enhance your audio system installation and performance.
