Soundstream DSP / Processors

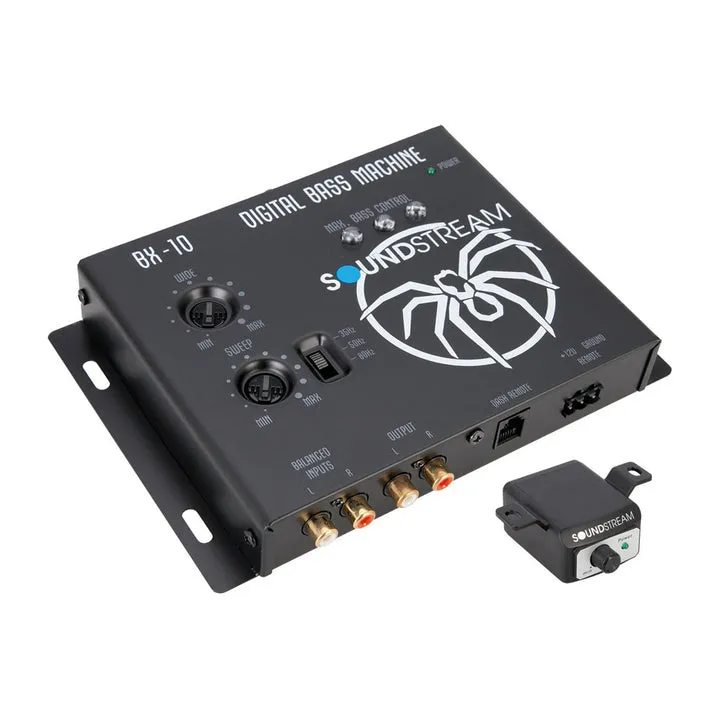

Digital Bass Reconstruction Processor w/ Dash Mount Remote Gain Control Max Bass Control PWM High Head Room Power Supply Frequency Response;  10HZ - 100KHz Dash Mount Remote Control PFM Subsonic Filter Balanced Inputs Bass Output Control Output Level:  13.5 Volt THD:  0.003% S/N Ratio:  130dB Balanced Input Noise Rejection:  60dB

Bass Reconstruction Processor  SWEEP: selects the frequency boosted by the equalizer. This is the “center frequency,” which can be as low as 27Hz or 63Hz. Choosing this frequency depends on your taste in music. WIDTH: increases or decreases the bandwidth range, or “Q,” boosting frequencies near the “center frequency.” Narrow Q focuses on harmonics immediately surrounding the center frequency. Wide Q unlocks harmonics all around the center frequency. DASH CONTROL: included with this bass processor can be mounted anywhere in the vehicle, but easy adjustment from the driver seat is recommended. The output level of the Bass Equalizer can be controlled.

5-Band Parametric Equalizer w/ Voltage Level Indicator

Soundstream audio product featuring quality construction with proven performance. Part of Soundstream's legacy in car audio since the 1980s. Designed for powerful, reliable sound reproduction with modern features and protection circuitry.

Dash Mounted Subwoofer Level Control Low/Sub, Mid-Low, Mid-High, High/Tweeter 8.5V Maximum RCA Output Line Driver Mute Keys on All Channels High/Tweeter Signal Processing Options: Variable 1kHz-10kHz High-Pass Crossover Mid-High Signal Processing Options: Variable 12dB 550Hz-3kHz High-Pass & 4kHz-20kHz Low-Pass Crossover Mid-Low Signal Processing Options: Variable 12dB 50Hz-400Hz High-Pass & 30Hz-5kHz Low-Pass Crossover Low/Subwoofer Signal Processing Options: Optional 3-stage 24dB Subsonic Filter Variable 50Hz-350Hz 12dB Low-Pass Crossover Dedicated 1800 Phase Inversion Switch Variable 0-12db 45Hz Bass Boost PROX4.1 Owners Manual (.PDF)
