American Bass Batteries

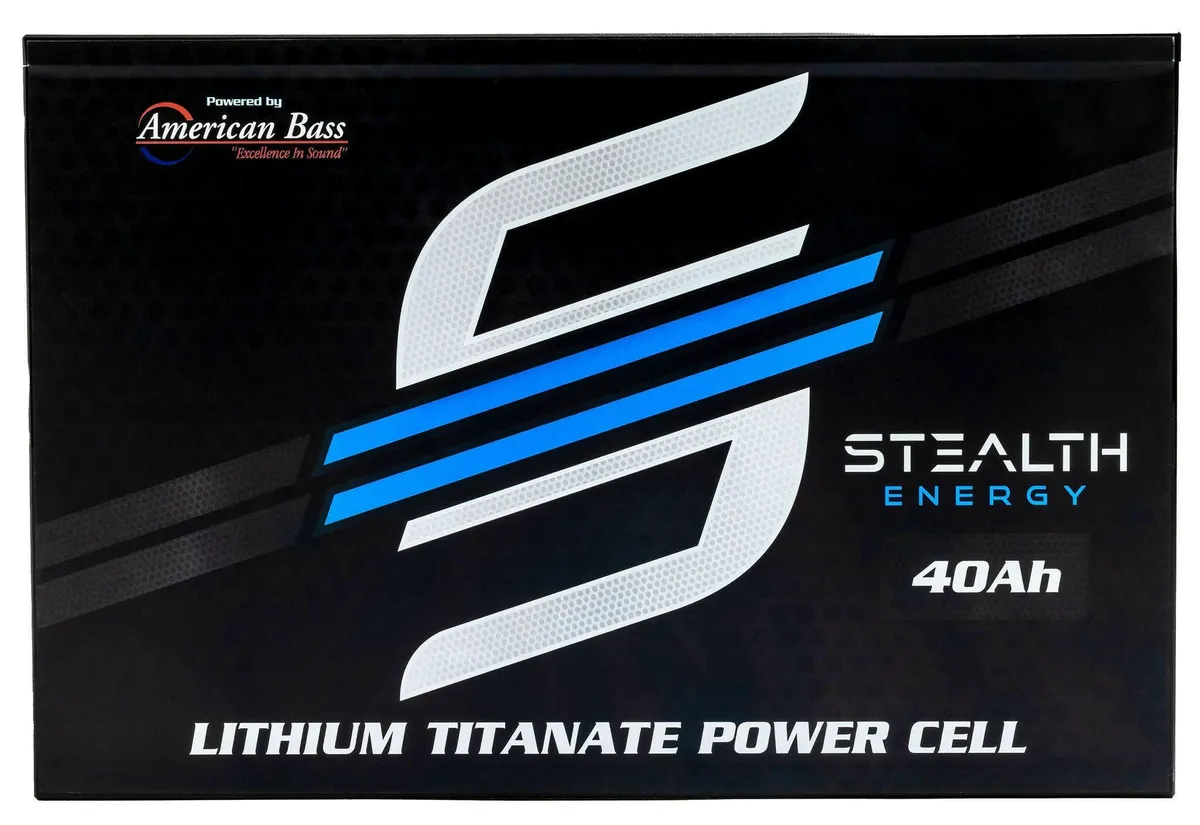

Unveiling the pinnacle of car audio power technology - introducing the Stealth Energy battery by American Bass USA. Designed for those who refuse to compromise, this lithium titanate powerhouse offers unbeatable performance, ensuring your beats never miss a pulse. Dive into a world where power, longevity, and supreme audio coexist. Key Features: High Performance: With a nominal voltage of 13.8V and a robust nominal capacity of 40Ah, this battery is tailor-made to meet the demanding needs of advanced car audio systems. Premium Cells: Incorporating LTO Cylindrical cells (66160) that each have a 2.3V, 40AH capacity, reliability and endurance are guaranteed. Massive Current Capability: Designed for the most rigorous audio demands, it offers a continuous discharge current of 400A (10C), and can handle peak currents of up to 800A (20C). Intelligent Voltage Management: Ensuring a long life and consistent performance, the discharge cuts off at 9V (1.5V per cell), while charging is halted at 16.8V (2.8V per cell). The in-built balancing starts at 2.7V per cell, adjustable between 2.5V to 2.8V. Durable and Compact Design: Weighing in at approximately 15.6 kg, its compact dimensions of 14.2'' (L) x 10.1'' (W) x 9.3'' (H) (or 360mm x 255mm x 235mm) ensures it fits seamlessly into your car's setup. Sturdy Connectors: Featuring a pair of 3-hole aluminum blocks, you're ensured of a safe and reliable connection. Resilient to Extremes: Whether you're in icy chills or scorching heats, this battery keeps pumping. With an operating temperature ranging from 0°C to 45°C while charging and -20°C to 55°C when discharging, it's built to endure. Long-term Storage Solutions: For those times when you need to store it away, it's recommended to keep it at 20 ± 5°C for optimal longevity. Impressive Life Cycle: Tested to international IEC standards, expect over 20,000 life cycles with 80% of its initial capacity at a 1C rate. That's durability you can trust. Nominal Voltage 13.8V Nominal Capacity 40Ah Cell inside LTO Cylindrical cell 66160 2.3V 40AH Configuration 6S1P Continuous Discharge Current 400A (10C) Peak Discharge Current 800A (20C) Discharge Cut-off Voltage 9V (1.5V per cell) Charge Cut-off Voltage 16.8V (2.8V per cell) Balancing Start Voltage 2.7V per cell (adjustable between 2.5V ~2.8V) Battery Net Weight 15.6 Kg (approx.) Battery Dimension 14.2'' (L) *10.1''（W）*9.3'' (H) 360（L）*255（W）*235 (H) mm Connector Pair of 3-hole aluminum blocks Operating temperature Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C Storage temperature Recommended to store 20 ± 5°C for long term storage Life Cycle >20000 times (80% of initial capacity at 1C rate, IEC Standard) Support Specification Sheet (PDF) User Manual

Unveiling the pinnacle of car audio power technology - introducing the Stealth Energy battery by American Bass USA. Designed for those who refuse to compromise, this lithium titanate powerhouse offers unbeatable performance, ensuring your beats never miss a pulse. Dive into a world where power, longevity, and supreme audio coexist. Key Features: High Performance: With a nominal voltage of 13.8V and a robust nominal capacity of 40Ah, this battery is tailor-made to meet the demanding needs of advanced car audio systems. Premium Cells: Incorporating LTO Cylindrical cells (66160) that each have a 2.3V, 40AH capacity, reliability and endurance are guaranteed. Massive Current Capability: Designed for the most rigorous audio demands, it offers a continuous discharge current of 400A (10C), and can handle peak currents of up to 800A (20C). Intelligent Voltage Management: Ensuring a long life and consistent performance, the discharge cuts off at 9V (1.5V per cell), while charging is halted at 16.8V (2.8V per cell). The in-built balancing starts at 2.7V per cell, adjustable between 2.5V to 2.8V. Durable and Compact Design: Weighing in at approximately 15.6 kg, its compact dimensions of 14.2'' (L) x 10.1'' (W) x 9.3'' (H) (or 360mm x 255mm x 235mm) ensures it fits seamlessly into your car's setup. Sturdy Connectors: Featuring a pair of 3-hole aluminum blocks, you're ensured of a safe and reliable connection. Resilient to Extremes: Whether you're in icy chills or scorching heats, this battery keeps pumping. With an operating temperature ranging from 0°C to 45°C while charging and -20°C to 55°C when discharging, it's built to endure. Long-term Storage Solutions: For those times when you need to store it away, it's recommended to keep it at 20 ± 5°C for optimal longevity. Impressive Life Cycle: Tested to international IEC standards, expect over 20,000 life cycles with 80% of its initial capacity at a 1C rate. That's durability you can trust. Nominal Voltage 13.8V Nominal Capacity 80Ah Cell inside LTO Cylindrical cell 66160 2.3V 40AH Configuration 6S2P Continuous Discharge Current 800A (10C) Peak Discharge Current 1600A (20C) Discharge Cut-off Voltage 9V (1.5V per cell) Charge Cut-off Voltage 16.8V (2.8V per cell) Balancing Start Voltage 2.7V per cell (adjustable between 2.5V ~2.8V) Battery Net Weight 25.6 Kg (approx.) Battery Dimension 14.2'' (L) *10.1''（W）*11.6'' (H) 360（L）*255（W）*295 (H) mm Connector Pair of 5-hole aluminum blocks Operating temperature Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C Storage temperature Recommended to store 20 ± 5°C for long term storage Life Cycle >20000 times (80% of initial capacity at 1C rate, IEC Standard) Support Specification Sheet (PDF) User Manual

Up To 2500 Watt Amplifiers. 12V AGM Battery, 100 AH NOMINAL VOLTAGE 12V NOMINAL CAPACITY(20HR) 100.0AH APPROX WEIGHT 30.6 Kg (67.5Ibs) TERMINAL T11 CONTAINER MATERIAL ABS MAX. DISCHARGE CURRENT 1200A (5s) INTERNAL RESISTANCE APPROX Approx 4.9mΩ NOMINAL OPERATING TEMP. RANGE 25+3 C (77+5 F ) DIMENSION Length: 330+3mm (12.99 inches) Width: 173+2mm (6.81 inches) Container Height: 212+3mm (8.35 inches) Total Height (with Terminal): 220+3mm (8.66 inches) RATED CAPACITY 107.2 AH/5.36A: (20hr ,1.80V/cell,25 C/77 F) 100.0 AH/10.0A: (10hr ,1.80V/cell,25 C/77 F) 87.7 AH/17.5A: (5hr ,1.75V/cell,25 C/77 F) 79.5 AH/26.5A: (3hr ,1.75V/cell,25 C/77 F) 64.6 AH/64.6A: (1hr ,1.60V/cell,25 C/77 F) CAPACITY AFFECTED BY TEMPERATURE 40 C (104 F): 103% 25 C (77 F): 100% 0 C (32 F): 86% OPERATING TEMP.RANGE Discharge: -15~50 C (5~122 F) Charge: 0~40 C (32~104 F) Storage: -15~40 C (5~104 F) CYCLE USE Initial Charging Current less than 30.0A.Voltage 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C STANDBY USE No limit on Initial Charging Current Voltage 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C SELF DISCHARGE Batteries may be stored for up to 6 months at 25 C(77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter. Support Specification Sheet (PDF)

Up To 500 Watt Amplifiers 12V AGM Battery, 15 AH Stealth Energy AGM 15 Ah battery. Stealth Energy was created by American Bass Audio, a high-end car audio equipment and accessories manufacturer, and a world leader in car audio competition. Accordingly, Stealth Energy batteries are specifically designed to power high-performance car audio systems that require a whole lot of juice. If you need a jolt of instantaneous power for your system, there is no other battery on the market better than Stealth Energy. Period. NOMINAL VOLTAGE 12V NOMINAL CAPACITY(20HR) 15.0AH APPROX WEIGHT Approx 4.9 kg (10.8lbs) TERMINAL T12 CONTAINER MATERIAL ABS MAX. DISCHARGE CURRENT 225A (5s) INTERNAL RESISTANCE APPROX 18mΩ NOMINAL OPERATING TEMP. RANGE 25 3 C (77 5 F ) DIMENSION Length: 181.5 2mm (7.14 inches) Width: 76.5 2mm (3.01 inches) Container Height: 167.5 2mm (6.59 inches) Total Height (with Terminal): 167.5 2mm (6.59 inches) RATED CAPACITY 15.0 AH/0.75A: (20hr ,1.80V/cell,25 C/77 F) 14.0 AH/1.40A: (10hr ,1.80V/cell,25 C/77 F) 12.8 AH/2.55A: (5hr ,1.75V/cell,25 C/77 F)11.5 AH/3.83A: (3hr ,1.75V/cell,25 C/77 F) 9.42 AH/9.42A: (1hr ,1.60V/cell,25 C/77 F) CAPACITY AFFECTED BY TEMPERATURE 40 C (104 F): 103% 25 C (77 F): 100% 0 C (32 F): 86% OPERATING TEMP.RANGE Discharge: -15 50 C (5 122 F) Charge: 0 40 C (32 104 F) Storage: -15 40 C (5 104 F) CYCLE USE Initial Charging Current less than 4.5A.Voltage 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C STANDBY USE No limit on Initial Charging Current Voltage 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C SELF DISCHARGE Batteries may be stored for up to 6 months at 25 C(77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter. Support Specification Sheet (PDF)

Up To 700 Watt Amplifiers 12V AGM Battery, 20 AH NOMINAL VOLTAGE 12V NOMINAL CAPACITY(20HR) 20.0AH APPROX WEIGHT Approx 5.78 kg (12.74lbs) TERMINAL T12 CONTAINER MATERIAL ABS MAX. DISCHARGE CURRENT 300A (5s) INTERNAL RESISTANCE APPROX 15mB NOMINAL OPERATING TEMP. RANGE 25 +3 C (77+5 F ) DIMENSION Length: 181.512mm (7.14 inches) Width: 7712mm (3.03 inches) Container Height: 167.512mm (6.59 inches) Total Height (with Terminal): 167.512mm (6.59 inches) RATED CAPACITY 20.0 AH/1.00A: (20hr ,1.80V/cell,25 C/77 F) 18.6 AH/1.86A: (10hr ,1.80V/cell,25 C/77 F) 17.0 AH/3.40A: (5hr ,1.75V/cell,25 C/77 F) 15.3 AH/5.10A: (3hr ,1.75V/cell,25 C/77 F) 12.6 AH/12.6A: (1hr ,1.60V/cell,25 C/77 F) CAPACITY AFFECTED BY TEMPERATURE 40 C (104 F): 103% 25 C (77 F): 100% 0 C (32 F): 86% OPERATING TEMP.RANGE Discharge: -15~50 C (5~122 F) Charge: 0~40 C (32~104 F) Storage: -15~40 C (5~104 CYCLE USE Initial Charging Current less than 6.0A.Voltage 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C STANDBY USE No limit on Initial Charging Current Voltage 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C SELF DISCHARGE Batteries may be stored for up to 6 months at 25 C(77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter. Support Specification Sheet (PDF)

Up To 900 Watt Amplifiers 12V AGM Battery, 35 AH NOMINAL VOLTAGE 12V NOMINAL CAPACITY(20HR) 35.0AH APPROX WEIGHT Approx 11.2 kg (24.7lbs TERMINAL T6 CONTAINER MATERIAL ABS MAX. DISCHARGE CURRENT 525A (5s) INTERNAL RESISTANCE APPROX Approx 11mΩ NOMINAL OPERATING TEMP. RANGE 25+3 C (77+5 F ) DIMENSION Length: 195+2mm (7.68 inches) Width: 130+2mm (5.12 inches) Container Height: 164+2mm (6.46 inches) Total Height (with Terminal): 167+2mm (6.57 inches) RATED CAPACITY 35.0 AH/1.75A: (20hr ,1.80V/cell,25 C/77 F) 32.6 AH/3.26A: (10hr ,1.80V/cell,25 C/77 F) 29.7 AH/5.95A: (5hr ,1.75V/cell,25 C/77 F) 26.8 AH/8.93A: (3hr ,1.75V/cell,25 C/77 F) 22.0 AH/22.0A: (1hr ,1.60V/cell,25 C/77 F) CAPACITY AFFECTED BY TEMPERATURE 40 C (104 F): 103% 25 C (77 F): 100% 0 C (32 F): 86% OPERATING TEMP.RANGE Discharge: -15~50 C (5~122 F) Charge: 0~40 C (32~104 F) Storage: -15~40 C (5~104 F) CYCLE USE Initial Charging Current less than 10.5A. Voltage 0 0 0 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C STANDBY USE No limit on Initial Charging Current Voltage 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C SELF DISCHARGE Batteries may be stored for up to 6 months at 25 C(77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter. Support Specification Sheet (PDF)

Up To 1500 Watt Amplifiers 12V AGM Battery,55 AH NOMINAL VOLTAGE 12V NOMINAL CAPACITY(20HR) 55.0AH APPROX WEIGHT Approx 16.2 kg (35.17lbs) TERMINAL T6 CONTAINER MATERIAL ABS MAX. DISCHARGE CURRENT 660A (5s) INTERNAL RESISTANCE APPROX Approx 7.5mΩ NOMINAL OPERATING TEMP. RANGE 25+3 C (77+5 F ) DIMENSION Length: 229+3mm (9.02 inches) Width: 138+2mm (5.43 inches) Container Height: 205+3mm (8.07 inches) Total Height (with Terminal): 211+3mm (8.31 inches) RATED CAPACITY 57.2 AH/2.86A: (20hr ,1.80V/cell,25 C/77 F) 55.0 AH/5.50A: (10hr ,1.80V/cell,25 C/77 F) 47.3 AH/9.46A: (5hr ,1.75V/cell,25 C/77 F) 42.9 AH/14.3A: (3hr ,1.75V/cell,25 C/77 F) 33.6 AH/33.6A: (1hr ,1.60V/cell,25 C/77 F) CAPACITY AFFECTED BY TEMPERATURE 40 C (104 F): 103% 25 C (77 F): 100% 0 C (32 F): 86% OPERATING TEMP.RANGE Discharge: -15~50 C (5~122 F) Charge: 0~40 C (32~104 F) Storage: -15~40 C (5~104 F) CYCLE USE Initial Charging Current less than 15.5A.Voltage 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C STANDBY USE No limit on Initial Charging Current Voltage 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C SELF DISCHARGE Batteries may be stored for up to 6 months at 25 C(77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter. Support Specification Sheet (PDF)

Up To 1800 Watt Amplifiers 12V AGM Battery, 75 AH NOMINAL VOLTAGE 12V NOMINAL CAPACITY(20HR) 75.0AH APPROX WEIGHT Approx 22.3 Kg (49.2Ibs) TERMINAL T14 CONTAINER MATERIAL ABS MAX. DISCHARGE CURRENT 900A (5s) INTERNAL RESISTANCE APPROX Approx 6.6mΩ NOMINAL OPERATING TEMP. RANGE 25+3 C (77+5 F ) DIMENSION Length: 260+3mm (10.20 inches) Width: 168+2mm (6.61 inches) Container Height: 208+3mm (8.19 inches) Total Height (with Terminal): 14+3mm (8.43 inches) RATED CAPACITY 80.4 AH/: (20hr ,1.80V/cell,25 C/77 F) 75.0 AH/7.50A: (10hr ,1.80V/cell,25 C/77 F) 65.8 AH/13.2A: (5hr ,1.75V/cell,25 C/77 F) 59.6 AH/19.9A: (3hr ,1.75V/cell,25 C/77 F) 48.5 AH/48.5A: (1hr ,1.60V/cell,25 C/77 F) CAPACITY AFFECTED BY TEMPERATURE 40 C (104 F): 103% 25 C (77 F): 100% 0 C (32 F): 86% OPERATING TEMP.RANGE Discharge: -15~50 C (5~122 F) Charge: 0~40 C (32~104 F) Storage: -15~40 C (5~104 F) CYCLE USE Initial Charging Current less than 22.5A.Voltage 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C STANDBY USE No limit on Initial Charging Current Voltage 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C SELF DISCHARGE Batteries may be stored for up to 6 months at 25 C(77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter. Support Specification Sheet (PDF)
