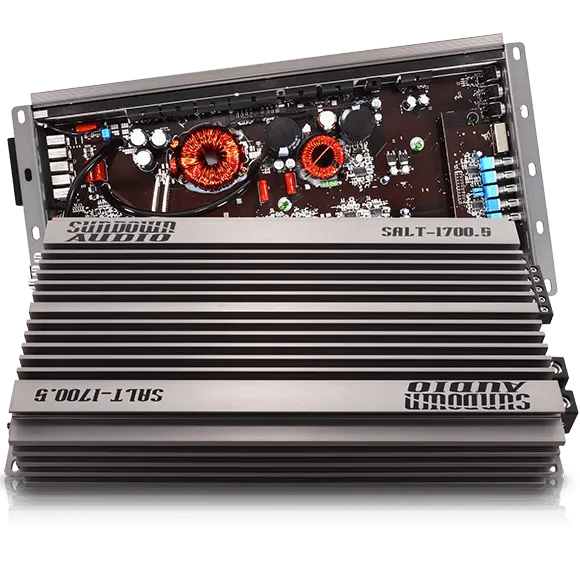

SALT-1700.5 5-Channel Amplifier

1,300 x 1 @ 1 ohm RMS Mono (ch. 5) 220 x 4 + 800 x 1 @ 2 ohms RMS Stereo (ch. 1-4 + ch. 5) 125 x 4 +480 x 1 @ 4 ohms RMS Stereo (ch. 1-4 + ch. 5) 2 ohm stereo stable / 4 ohm bridged stable Full Range Digital 5 Channel Amplifier Variable subsonic crossover filter: 10Hz - 100Hz Variable high & low pass filter: 50Hz - 500Hz X1/X10 crossover multiplier Power, clipping & protection indicators included Thermal, voltage, speaker short, and dc-offset protection circuitry Wired remote control displays voltage and temperature Producing optimum power at realistic voltages (the 12s, rather than needing 14+ volts), the SALT – Sundown Audio Low-Voltage Technology – is Sundown’s answer! SALT amplifiers represent the pinnacle of Korean Class-D amplifier technology. Whether you are a world-class SPL competitor or a hardcore sound quality fan, the SALT series will be your go-to choice to bring your entire system to life! It's got an easy-to-use high pass, low pass and subsonic filter to customize your sound exactly as you like it. Equipped with on-board power, clipping, and protection indicators to keep everything running smoothly. The optional remote control lets you see voltage and temperature at a glance. With SALT amps you get all the control you’d ever need, incredible dynamics and the kind of power only Sundown can deliver! Product Manual Specifications Input Sensitivity : 6V - 0.2V Double Sided Through Hole Epoxy PCB Efficiency : 75% 4OHM, at 100HZ Signal / Noise Ratio : 105DB < Damping Factor : 400 < Frequency Response : 10 Hz – 25khz 12DB/ OCT Variable Crossover Slope (HPF/LPF) 12DB/ OCT Variable Subsonic Crossover Slope Tested Voltage & THD : 12.8V & Less Than 1% THD Operation Voltage : DC 9V - 15.5V Power Input Recommended Fuse : 200 Amps Dimensions : 14.96” L x 6.85” W x 2.66” H
