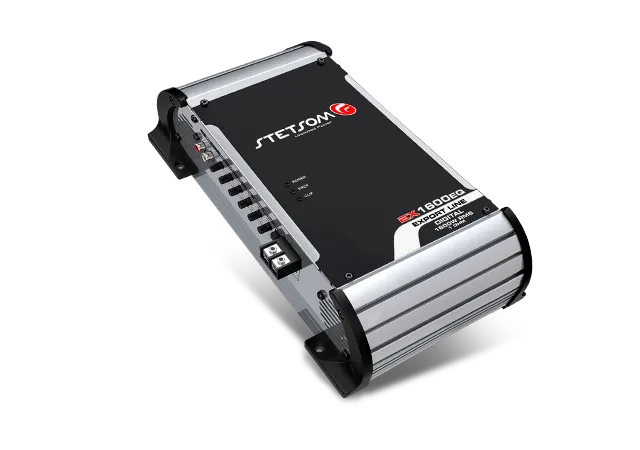

EX 1600 EQ Mono Digital Amplifier Full Range Class D Mono (DISCONTINUED)

The EX Series amps are Stetsom's best-sellers. They are excellent with bass as well as with voice. TECHNICAL SPECS (1 Ohm): Number of Channels: 1 RMS Power at 1 Ohm 14.4V: 1850W RMS RMS Power at 2 Ohm 14.4V: 985W RMS Supply Voltage: 9.5 ~ 15V Frequency Response: 10Hz ~25KHz Crossover Low Pass: 50Hz ~25KHz Crossover High Pass: 10Hz ~700Hz EQ - BASS @ 45Hz: ±10dB EQ - MID BASS @ 270 Hz: ±10dB EQ - MID HIGH @ 2KHz: ±10dB Over Clip (Power): 15% Signal to Noise: > 90 dB Harmonic Distortion: ≤ 10% THD Input Sensitivity: 0.2V Input Impedance: 19K OHMS Min. Output Impedance: 1 OHM Consumption with Musical Signal: 1.3A ~80A Consumption with Bass Signal: 1.3A ~160A Dimensions (H x W x D): 75 x 310 x 170 mm / 3 x 12.2 x 6.7 inches Weight: 2.0 Kg / 4.4 lbs TECHNICAL SPECS (2 Ohms): Number of Channels: 1 RMS Power at 2 Ohm 14.4V: 1820W RMS RMS Power at 4 Ohm 14.4V: 1100W RMS Supply Voltage: 9.5 ~ 15V Frequency Response: 10Hz ~25KHz Crossover Low Pass: 50Hz ~25KHz Crossover High Pass: 10Hz ~700Hz EQ - BASS @ 45Hz: ±10dB EQ - MID BASS @ 270 Hz: ±10dB EQ - MID HIGH @ 2KHz: ±10dB Over Clip (Power): 15% Signal to Noise: > 90 dB Harmonic Distortion: ≤ 10% THD Input Sensitivity: 0.2V Input Impedance: 26K OHMS Min. Output Impedance: 2 OHMS Consumption with Musical Signal: 1.6A ~75A Consumption with Bass Signal: 1.6A ~150A Dimensions (H x W x D): 75 x 310 x 170 mm / 3 x 12.2 x 6.7 inches Weight: 2.0 Kg / 4.4 lbs Download Manual
