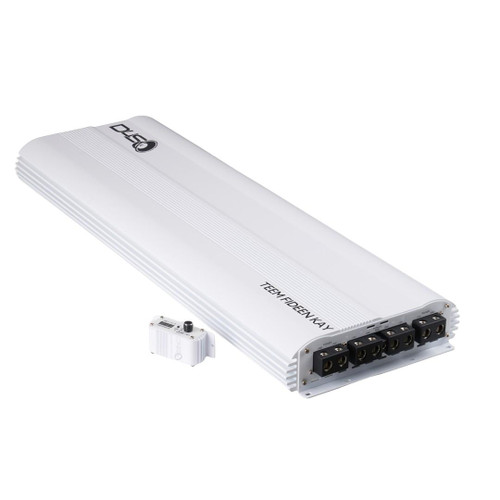

Down4Sound DOWN4SOUND TEEMFIDEEN KAY - WHITE GLOSS | 15000W RMS

Description Warranty Information Additional Information 0 Reviews Description The Down4Sound TEEMFIDEEN KAY in Gloss White is built for one purpose: to deliver massive, controlled power without hesitation . With up to 15000W RMS at 1Ω , this amplifier gives subwoofers the overhead they need to hit harder, deeper, and cleaner than standard designs can handle. It stays stable under pressure, keeps distortion low, and provides relentless output for high-demand systems, long demo sessions, and serious bass performance. Key Features 15000W RMS @ 1Ω 7000W RMS @ 2Ω 4000W RMS @ 4Ω 30000W RMS strapped @ 1Ω Stable down to 0.5Ω mono High-speed MOSFET power supply Low-pass filter: 35Hz–250Hz Subsonic filter: 10Hz–50Hz Phase adjustment: 0°–180° Clip limiter for clean, controlled output Wired remote with voltage, temperature, and clipping display 4-way protection (thermal, high/low voltage, short, DC) High-purity copper PCB 0-gauge power/ground terminals Supports up to 4-gauge speaker wire Operating voltage: 12V–15.5V Dimensions 32.28" × 11.41" × 2.71" 820 mm × 290 mm × 69 mm Power Advisory The TEEM FIDEEN KAY is a high-output amplifier that demands a properly designed electrical system for safe and reliable operation. The following specifications are intended to support one or two TEEM FIDEEN KAY amplifiers only. Any additional amplifiers must be accounted for with their own independent alternator and battery capacity. Minimum Electrical Requirements for One Amplifier (Daily Music Use) Single Alternator Setup (not ideal): One 370A to 400A high-output alternator Idle output should be no less than 180A to 220A Not recommended for demos or extended high-power sessions Battery bank must absorb peak transients and supply current during voltage drop Dual Alternator Setup (recommended): Two 320A to 350A high-output alternators Combined output of 600A to 700A at cruising RPM Minimum of 400A combined at idle External regulation recommended for stable charging between 14.4V and 15.5V Electrical Requirements for Two Amplifiers (Strapped – 30,000W RMS) Minimum Charging Solution: Three 320A to 350A high-output alternators Combined output of 960A to 1050A Preferred Charging Solution: Four high-output alternators rated at 320A or higher Total charging capacity of 1200A to 1300A Does not include headroom for any additional amplifiers or accessories Recommended Lithium Battery Bank by System Power For One Amplifier (15,000W RMS): 120Ah to 160Ah total lithium capacity Typical configuration: 6S3P to 6S4P (LTO 40Ah) or 4S3P (LiFePO₄) Common cell types: Yinlong 66160H. For Two Amplifiers (30,000W RMS): 240Ah to 300Ah total lithium capacity Typical configuration: 6S6P to 6S8P (LTO 40Ah) or 4S6P to 4S8P (LiFePO₄) Common cell types: Yinlong, C-Max NMC modules, large-format prismatic LiFePO₄ Key Notes These specs apply to TEEM FIDEEN KAY amplifiers only Any additional amps must be supported by separate alternator and battery upgrades Each TEEM amp is fused to handle up to 1120A peak draw Power and ground cables must be sized to handle full current safely Battery banks must be designed for sustained music playback, not just SPL burps Maintain system voltage optimal amplifier and lithium performance. Balancers or BMS systems are required to maintain safe and even cell voltage across the entire bank All wiring should be professionally routed with proper termination, grounding, and fuse protection View All Close Warranty Information Warranty Information Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier. All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our websi te. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only. At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return! * Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt. Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/ Down4Sound - Hours of Operation Monday 6am - 9pm PDT Tuesday 6am - 9pm PDT Wednesday 6am - 9pm PDT Thursday 6am - 9pm PDT Friday 6am - 9pm PDT Saturday 8am - 4pm PDT Sunday Closed View All Close Additional Information Amplifier Type: MONOBLOCK Amplifier Color: WHITE GLOSS Product Type: Amplifier View All Close 0 Reviews View All Close
