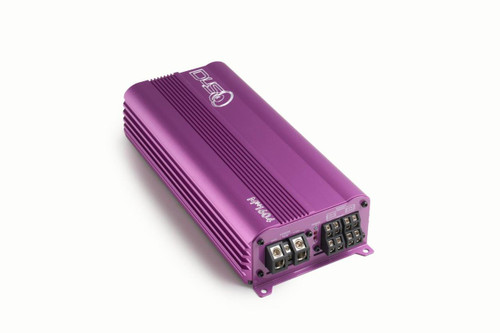

Down4Sound DOWN4SOUND MM1604 (MINI MAXX) - PURPLE | 600W RMS MINI 4CH CAR AUDIO AMPLIFIER

Description Warranty Information 0 Reviews Description The DOWN4SOUND MM1604 Mini Maxx in Purple is a compact 4 channel full range Class D car audio amplifier built for clean installs and efficient power delivery. Rated at 600W RMS , it is designed to drive mids and highs with authority, run active speaker setups, or bridge channels when you need more output from a compact platform. The Purple edition is made for color themed builds and clean presentation focused installs where the finish matters as much as the performance. Key Features 600W RMS rated output 4 channel full range Class D amplifier Bridgeable channels for flexible system design Adjustable crossovers for precise tuning High efficiency design for reduced heat 4 way protection circuit for reliable operation Input sensitivity 0.2V to 6V Operating voltage 9V to 15.5V Power Output 4 × 160W RMS at 4 ohms 4 × 220W RMS at 2 ohms 2 × 455W RMS at 4 ohms bridged Tuning Controls Full range frequency response 10Hz to 24.8kHz High pass filter 20Hz to 800Hz Low pass filter 50Hz to 800Hz Selectable x1 or x10 multiplier Band pass capable using onboard crossover controls Dimensions 9.84 inches × 4.87 inches × 2.13 inches Protection and Reliability Thermal protection Short circuit protection Voltage protection DC overload protection Technical Specifications Channels 4 Amplifier class Full range Class D Frequency response 10Hz to 24.8kHz Input sensitivity 0.2V to 6V Signal to noise ratio greater than 98dB Total harmonic distortion less than 0.1 percent Operating voltage 9V to 15.5V Fuse rating 80A Why Choose the MM1604 Mini Maxx Purple The MM1604 Mini Maxx is a strong solution when you want clean multi channel power in a compact footprint. It is built for systems that need efficient output, flexible tuning, and a finish that matches purple themed builds. Compact mini amplifier footprint Strong multi channel output for mids and highs Bridgeable flexibility for system expansion Wide tuning capability for clean installs Purple finish for purple themed builds Add the MM1604 Mini Maxx Purple to your system and get clean controlled power with a finish that complements the build. View All Close Warranty Information Warranty Information Your new Down4Sound product is covered by 1 limited warranty if purchased from Down4Sound or an authorized Down4Sound dealer. This warranty does not cover improper installation, accidental damage, misuse, abuse, improper wiring, operation of unit outside of listed specifications, or any product that has been modified or repaired by anyone other than Down4Sound. Your warranty covers defects in materials and/or workmanship ONLY and is not an insurance policy. The warranty only covers the original owner of the amplifier. All warranty returns must be accompanied by the original sales invoice or receipt. You must contact us to request an RMA number prior to sending any returns via the RMA request form on our websi te. You are responsible for the cost of shipping your product back to us for warranty examination. If your product is covered under warranty, shipping back to you will be at no charge to you – if your product is replaced/repaired outside of warranty you must pay for return shipping and repair bill prior returning of the product or if no defect is found you are required to pay for return shipping only. At the sole discretion of Down4Sound your product will be either repaired or replaced when it is being covered under warranty. In the event of shipping damage due to improper packaging on products being returned to Down4Sound the customer is liable for the cost of all damages, necessary repairs, or replacement. Be sure to properly pack your return! * Extended additional warranty purchased on amplifiers take in affect from the date of purchase and must also be stated on orginal sales invoice or receipt. Refund/Return Policy: https://www.down4soundshop.com/shipping-returns/ Down4Sound - Hours of Operation Monday 6am - 9pm PDT Tuesday 6am - 9pm PDT Wednesday 6am - 9pm PDT Thursday 6am - 9pm PDT Friday 6am - 9pm PDT Saturday 8am - 4pm PDT Sunday Closed View All Close 0 Reviews View All Close
